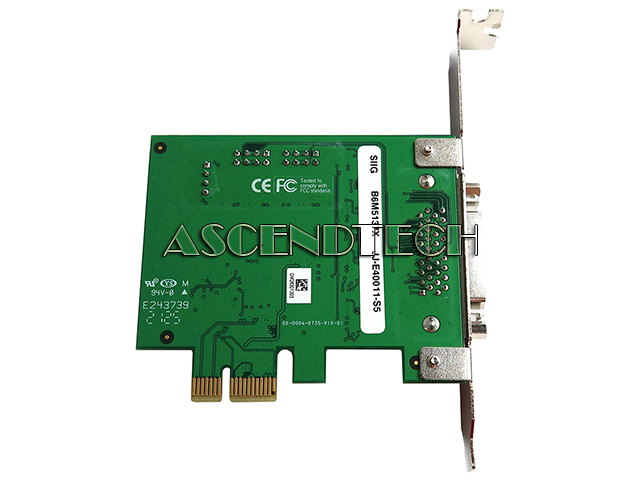

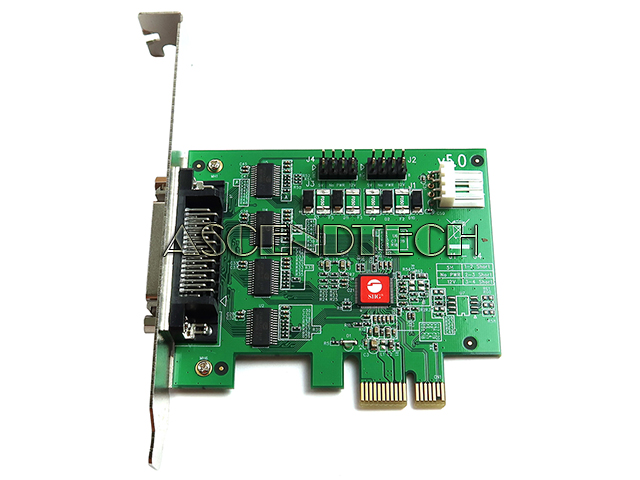

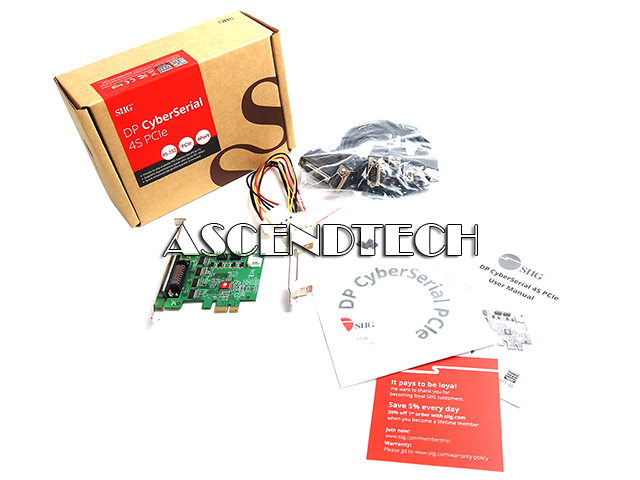

SIIG DP CyberSerial 4S PCIe JJ-E40011-S5
Description
SIIG CYBERPARALLEL DP CyberSerial 4S PCIe ASIX AX99100 921 Kbps 4x RS-232 Port Expansion Card JJ-E40011-S5.
Additional Features:
- Easily adds four RS232 DB9 serial ports through an available PCI Express slot;
- PCI Express 1-lane (x1) adapter works with any width PCI Express slot;
- Four high-speed 16550 UART RS-232 serial ports support asynchronous baud rates up to 921Kbps;
- Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment;
- Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.) Power is configurable via jumpers with silk-screened settings on PCB for easy identification and setup;
- Supports hardware and software flow control, 5, 6, 7, 8 and 9-bit serial format;
- Onboard power connector provides reliable power source for devices that require power;
- Dual-profile PCB design fits full size and low-profile system form factor with included full and low profile brackets;
Additional Specifications:
- Compliant with PCI Express Base Specification 2.0;
- Supports PCIe Power Management;
- Flow control: Hardware and Software;
- Stop bits: 5, 6, 7, 8 and 9-bit serial format;
- On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port;
- TAA compliant;
Environmental conditions:
- Operating temperature: 32 to 140 degrees F;
- Storage temperature: 14 to 158 degrees F;
- Relative humidity: 5 to 90% RH (non-condensing)
