Socket LGA 1151 DDR4 SATA 6GB/s USB 3.0 PCI-Express 3.0 x16 Intel Xeon / Core i7 / Core i5 / Core i3 / Pentium / Celeron Intel Motherboard. LGA1151 series motherboards combine a host of new and exciting technologies with the latest Intel Express Chipset, creating a unique range of motherboard designs that harness the outstanding performance of the new 4th generation Intel Core processors.
Specifications:

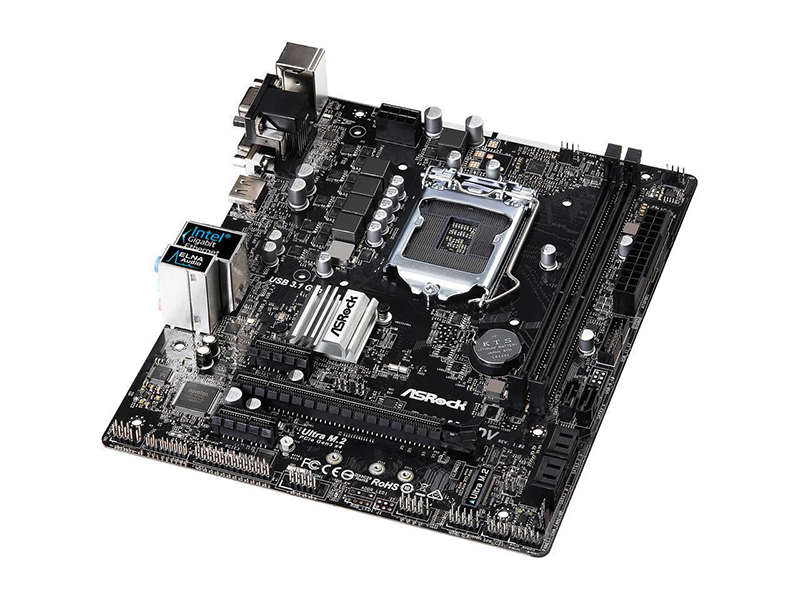

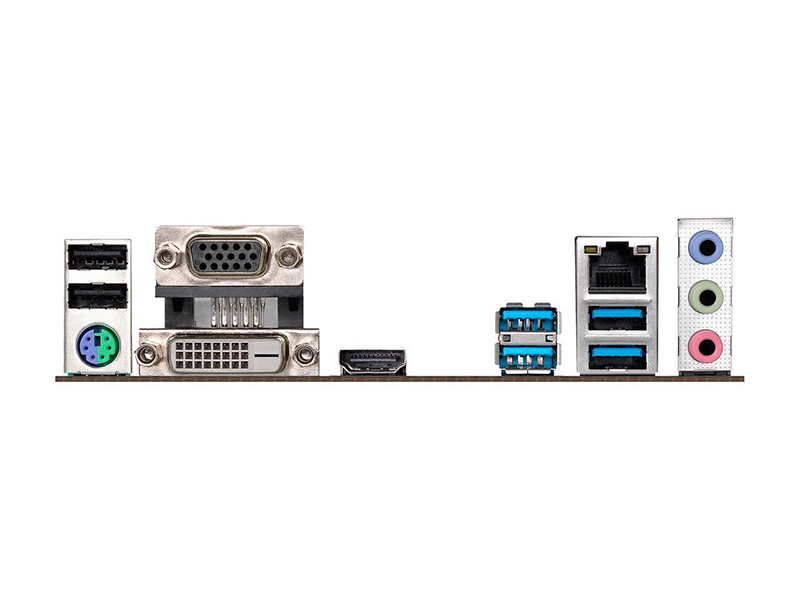

Model Brand ASRock Model B360M-HDV Supported CPU LGA 1151 (300 Series) CPU Type Supports 8th Generation Intel Core Processors (Socket 1151) Supported CPU Technologies Turbo Boost Technology 2.0 Chipsets Intel B360 Onboard Video * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Memory Number of Memory Slots 2×288pin Memory Standard DDR4 2666/ 2400/ 2133 Maximum Memory Supported 32GB Dual Channel Expansion Slots PCI Express 3.0 x16 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* PCI Express x1 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) Storage Devices 6 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug* M.2 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** Onboard Audio Realtek ALC887 7.1 Channels Onboard LAN LAN Chipset Intel I219-V Max LAN Speed 10/100/1000Mbps Rear Panel Ports 1 x PS/2 keyboard/mouse port Video Ports 1 x D-Sub Port 1 x HDMI RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) USB 3.1 4 x USB 3.1 Gen2 Type-A Ports (10Gb/s) USB 1.1/2.0 2 x USB 2.0 Ports (Supports ESD Protection) Audio Ports HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Connectors Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) Other Connectors 1 x Print Port Header Physical Spec Form Factor Micro ATX Dimensions (W x L) 8.9" x 7.4" Power Pin 1 x 24-pin ATX Power Connector Features Features Unique Feature: Packaging Package Contents Accessories
