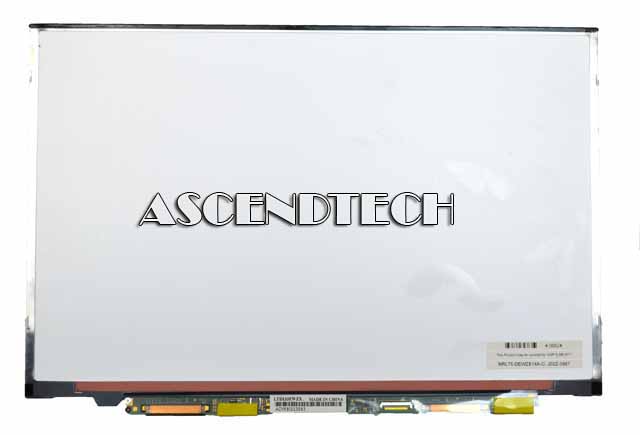

Sony 13.3" TFT LED LCD Screen Panel

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Sony 13.3" Tft Led Lcd Screen Panel . Model: Ltd133ewzx Display
  Enlarge
Sony 13.3" Tft Led Lcd Screen Panel . Model: Ltd133ewzx Display
Sony 13.3" Tft Led Lcd Screen Panel . Model: Ltd133ewzx Display
Sony 13.3" Tft Led Lcd Screen Panel . Model: Ltd133ewzx Display
Sony 13.3" Tft Led Lcd Screen Panel . Model: Ltd133ewzx Display
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LTPLCDLTD133EWZ
Brand Sony

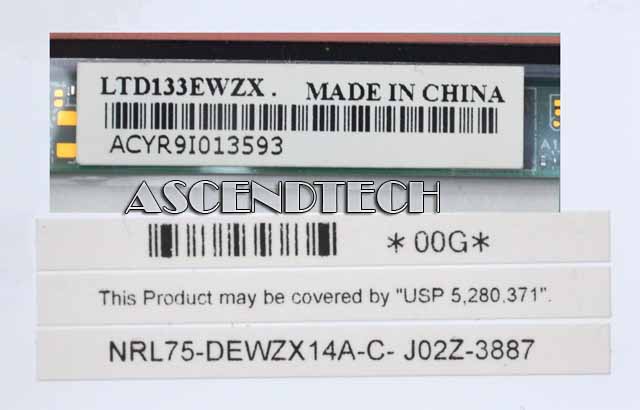

Model LTD133EWZX Display
Category Laptop Lcd Screens & Digitizers

Description

SONY Vaio LTD133EWZX is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:10 HD,1280(H) x 800(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. LTD133EWZX is designed for a display unit of notebook style personal computer and industrial machine.


Specifications:

Display area: 13.3” diagonal
Driver element: a-Si TFT active matrix
Number of pixel: 1280 x 800 pixel
Pixel Format: RGB vertical stripe
Surface treatment:  Anti-Glare
Display colors: 262,144 6 Bit
Backlight: WLED

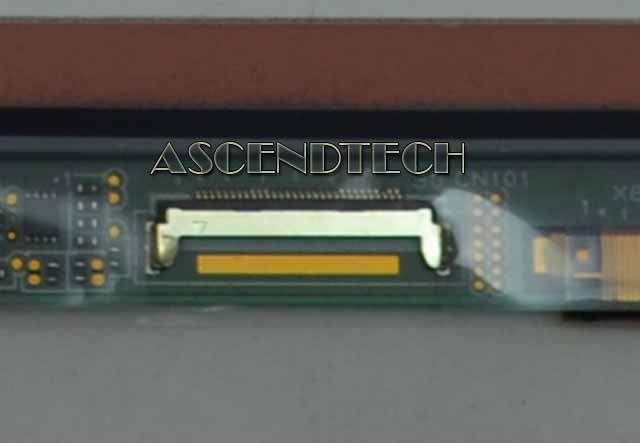

Connector: 30 pins
