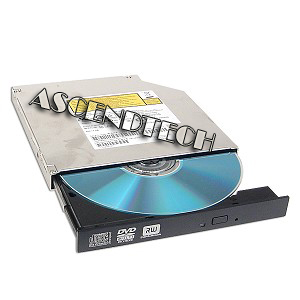

Sony Optiarc AD-7560A DVD±RW DL Drive

Sony Optiarc AD-7560A 8x DVD±RW DL Notebook Drive. With this Sony Optiarc AD-7560A you can write to DVD±R media at up to 8x, DVD+R DL up to 2x and ReWrite to DVD+RW to 4x. The AD-7560A can also write to CD-Rs at up to 24x and CD-RW media at up to 10x. Connect this Sony NEC Optiarc AD-7560A into your notebook's DVD/CD IDE connector and burn, rip and store your own music CDs, photos, home movies, back-up your entire hard drive, and watch DVDs on your notebook!

Manufacturer: Sony
Part Number: AD-7560A

Specifications:

Applicable DVD Formats (Read)
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-Video, DVD-Audio, SACD (Hybrid), UDF DVD, DVD-R, DVD-R DL, DVD-R 3.95 GB, DVD-R Authoring, DVD-R Multi-Border, DVD-RW, DVD+R, DVD+R DL, DVD+R Multi-Session, DVD+RW, DVD-RAM V1.0, DVDRAM V2.0 and 2.1 and 2.2.

Applicable CD Formats (Read)
CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2 Form-1 and Mode-2 Form-2, CD-i, CD-i Bridge, Video-CD (MPEG-1), Karaoke CD, Photo-CD, Enhanced CD, CD Plus, CD Extra, itrax CD, CD-Text, UDF CD, CD-R, and CD-RW

Applicable DVD Formats (Write)
DVD Data and Video

Applicable CD Formats (Write)
CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2 Form-1 and Mode-2 Form-2, CD-i, Video- CD, CD-Text

Disc Diameter
12 cm and 8 cm disc for Read/Write

Recordable Media Type
DVD+R (DVD+R Part 1 Single Layer, Basic Format Spec Ver 1.3) / DVD+RW (Single Layer, Volume1: 4X Basic Format Spec Ver 1.3 and Single Layer, Volume2: 8X Basic Format Spec Ver 1.0) / DVD+R DL (DVD+R Part 2, Double Layer: Basic Format Spec Ver 1.0) / DVD-R General (Ver 2.0 and 2.1) / DVD-RW (Ver 1.1 and 1.2) /DVD-R DL (Ver 3.0)/ DVD-RAM (Ver V2.0 and 2.1 and 2.2 Class 0 ; Single side :4.7 GB/1.4 GB ; Double side :9.4 GB/2.8 GB) and CD-R/CD-RW media

Disc Capacity
2,048 bytes/block (DVD)
2,048 bytes/block (CD Mode-1 and Mode-2 Form-1)
2,328 bytes/block (Mode-2 Form-2)
2,336 bytes/block (Mode-2)
2,352 bytes/block (CD-DA)

Data Buffer
2 MB

Rotational Speed
CD-ROM
CD-ROM: 5,000 RPM (10.8X to 24.8X CAV)
CD-R (Close Disc and Non-Close Disc): 4,200 RPM ( 9.1X to 21.1X CAV)
CD-RW (Close Disc and Non-Close Disc): 3,200 RPM ( 6.8X to 15.7X CAV)
CD-DA (DAE), Video CD (Copy): 2,000 RPM ( 4.3X to 10.1X CAV)
CD-DA ( Playback), Video CD (Playback): 2,000 RPM (4.3X to 10.1X CAV)

DVD-ROM
DVD-5 (Single Layer): 4,800 RPM (3.5X to 8.3X CAV)
DVD-R: 3,600 RPM (2.6X to 6.2X CAV)
DVD+R: 2,400 RPM (1.7X to 4.2X CAV)
DVD-9 (Dual Layer): 4,000 RPM (2.6X to 6.2X CAV)
DVD+R DL: 2,600 RPM (1.7X to 4.2X CAV)
DVD-R DL: 2,600 RPM (1.7X to 4.2X CAV)
DVD-RW: 3,600 RPM (2.6X to 6.2X CAV)
DVD+RW: 2,400 RPM (1.7X to 4.2X CAV)
DVD-5 (with CSS): 2,400 RPM (1.7X to 4.2X CAV)
DVD-9 (with CSS): 2,600 RPM (1.7X to 4.2X CAV)
DVD-RAM Ver 2.2 Class 0 (5X Speed): 3X/5X Z-CLV, 3X CLV, 2X CLV
DVD-RAM Ver 2.2 Class 0 (3X Speed): 3X CLV, 2X CLV
DVD-RAM Ver 2.2 Class 0 (2X Speed): 2x CLV
DVD-RAM Ver 2.2 Class 1 (6Xto16X Speed): 2x CLV
DVD-RAM Ver 1.0 (1X Speed): 2x CLV

Support Writing Speed
CD-R: 10-24X CAV, 10X-16X / 10-20X P-CAV, 10X CLV
Multi Speed CD-RW: 4X CLV
High Speed CD-RW: 4X,10X CLV
Ultra Speed CD-RW: 10X/16X/20X/24X Zone- CLV, 10X CLV
Ultra Plus Speed CD-RW: 10X/16X/20X/24X Zone- CLV, 10X CLV
DVD+R: 2.4X/ 4X/ 6X/ 8X Zone- CLV, 2.4X CLV
DVD+RW ( Single Layer, Volume2: 8X Basic Format Spec Ver 1.0) 3.3X / 6X / 8X Zone CLV, 3.3X CLV
DVD+RW (Single Layer, Volume1: 4X Basic Format Spec Ver 1.3 2.4X /4X Zone CLV, 2.4X CLV
DVD+R DL: 2.4X/ 4X/6X Zone- CLV, 2.4X CLV
DVD-R: 2X/ 4X /6X/ 8X Zone-CLV, 2X CLV
DVD-RW: 6X Speed Rev.3.0 3.3X /6X Zone CLV, 3.3X CLV
DVD-RW: 2X /4X Zone CLV, 2X CLV
DVD-R DL: 2X/ 4X/6X Zone- CLV, 2X CLV
DVD-RAM Ver 2.2 Class 0 3X/5X Zone CLV, 2X,3X CLV

Sustained Data Transfer Rate (typical)
DVD-ROM outside: 10,993 KB/s
DVD-ROM inside: 4,574 KB/s
CD-ROM outside: 3650 KB/s
CD-ROM inside: 1,571 KB/s
Access Time (typical) DVD-ROM Random Access: 130 ms
DVD-ROM Full Stroke: 240 ms
DVD-RAM Random Access: 200 ms
DVD-RAM Full Stroke: 450 ms
CD-ROM Random Access: 130 ms
CD-ROM Full Stroke: 240 ms
