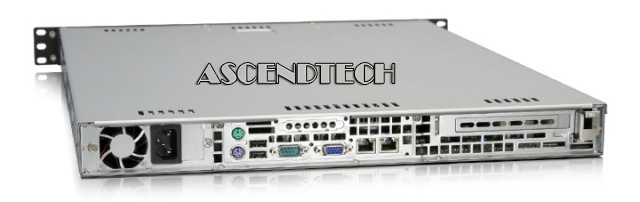

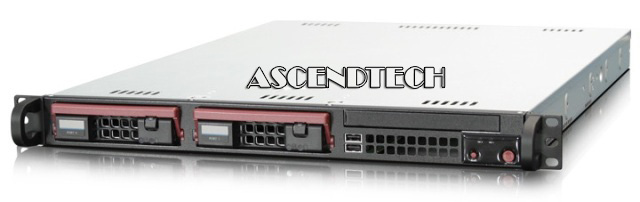

1U Rack Server Barebone | Supermicro 5017C-Tf Lga1155 1U Server Bb

SUPERMICRO SYS-5017C-TF LGA1155 Intel C204 DDR3 1600/1333/1066/800 1U Rackmount Server Barebone. Designed to deliver solid performance and mission-critical reliability for customer applications, these Supermicro uni-processor 1U rack servers support the latest Xeon® processor E3 family and 2nd gen. Core™ i3 Series processors and deliver additional levels of performance, power-efficiency and reliability.

Key Features:

Single socket H2 (LGA 1155) supports Intel® Xeon® E3-1200 & v2 series, 2nd Gen Core i3 processors
Intel® C204 PCH Chipset
2x 3.5" Hot-swap SATA2/3 HDDs
1x PCI-E 3.0* x8 FHFL slot
Up to 32GB DDR3 ECC 1333MHz / 1600MHz UDIMMs in 4 sockets
Intel® 82579LM and 82574L, 2x Gigabit Ethernet LAN ports
IPMI 2.0 on Dedicated LAN port
4x SATA 2.0 with RAID 0, 1, 5, 10 / 2x SATA 3.0 with RAID 0, 1, 5, 10
350W Gold Level Power Supply
1x Slim DVD-ROM Drive
Disk-on-module (DOM) power connector

Specifications:

Product	SuperServer 5017C-TF
Chassis	1U Rackmount (CSE-811TQ-350B)
Motherboard	Super X9SCM-F
CPU	Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen Core i3 processors Socket H2 (LGA 1155)
Memory Capacity	4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1600*/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chipset	Intel® C204 PCH chipset
SATA	4x SATA 2.0 (3Gbps) w/ RAID 0, 1, 5, 10 2x SATA 3.0 (6Gbps) w/ RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel® 82579LM and Intel® 82574L, 2x Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA	Nuvoton WPCM450RA0BX
Super I/O	Nuvoton NCT6776F
Clock Generator	CK505
Serial ATA	6 SATA ports 6 SATA hard drives supported
LAN	2x RJ45 LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB rear ports 1x USB Type-A 6x USB ports via header Total 9 USB 2.0 Compliant
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Port / Header	1x Fast UART 16550 serial port 1x internal header
Height	1.7" (43mm)
Width	16.8" (426mm)
Depth	22.6" (574mm)
Gross Weight	38 lbs (16.5kg)
Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED
Ports	2x USB ports
PCI-Express	1x PCI-E 3.0 x8 Full-height Full-length slot
Drive Bays	2x 3.5" Hot-swap SATA2/3 HDDs w/ RAID
DVD-ROM	Slim DVD-ROM Drive
System Cooling Fans	2x 10cm 5K RPM PWM blower fans
Power Supply	350W AC power supply w/ PFC
AC Voltage	100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V	18 Amp
+5V standby	3 Amp
+12V	29 Amp
+3.3V	15 Amp
Certification	80 PLUS Gold Certified
System BIOS Type	8Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3
