SUPERMICRO 5037MC-H8TRF 1155 3U SERVER

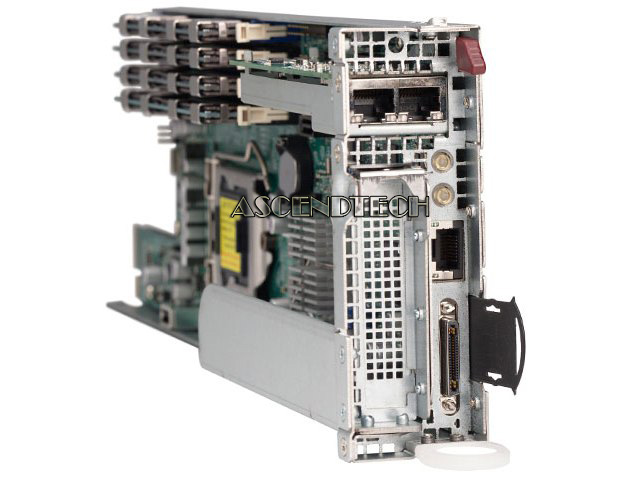

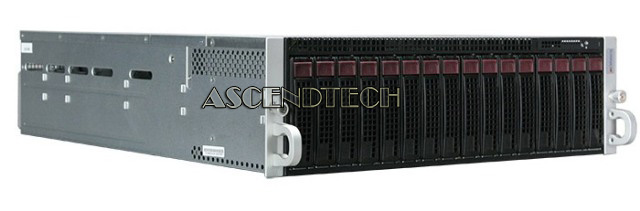

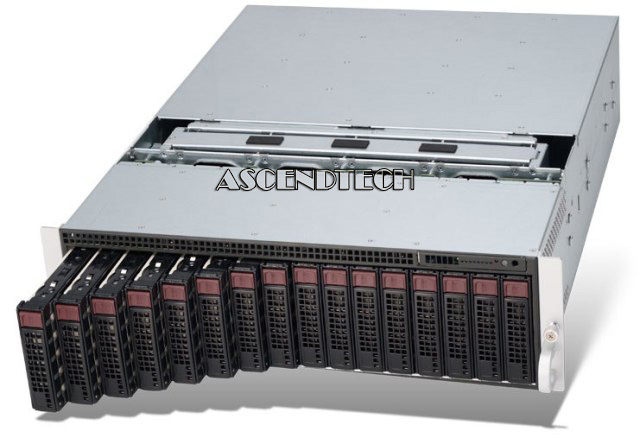

Supermicro MicroCloud Superserver SYS-5037MC-H8TRF LGA1155 Intel C204 3U Rackmount Barebone Server. The Supermicro MicroCloud modular server system provides 8 modular server nodes conveniently integrated into a compact 3U chassis that is only 23" deep. These cable-free, hot-pluggable server nodes operate independently. Each node is powered by an Intel Xeon E3-1200 processor and provides up to 32GB of ECC DDR3 1333MHz UDIMM memory, one PCI-E 2.0 x8 expansion slot for low-profile add-on card, and two 3.5" SATA 3.0 hard disk drives.





Key Features:

• 8 modular UP Nodes in 3U; each node:
• Intel Xeon® processor E3-1200 & v2 series; socket H2 (LGA 1155)
• Intel C204 PCH chipset
• Up to 32GB DDR3 ECC UDIMM 1600/1333MHz memory support
• 2x 3.5" hot-swap SATA3 (6Gbps) HDDs
• Intel 82580DB GbE LAN controller
• Dedicated LAN supports IPMI 2.0, Virtual Media over LAN and KVM over LAN
• Integrated Matrox G200eW Graphics controllers - 1x VGA port
• 2x USB 2.0 ports (1 header + 1 type A); 1x SATA DOM
• 4x 8cm heavy-duty PWM fans with optimal cooling zone
• 1620W Redundant Platinum Level Power Supplies

Specifications:

Product	SuperServer SYS-5037MC-H8TRF
Chassis	3U Rackmount (CSE-938H-R1620B)

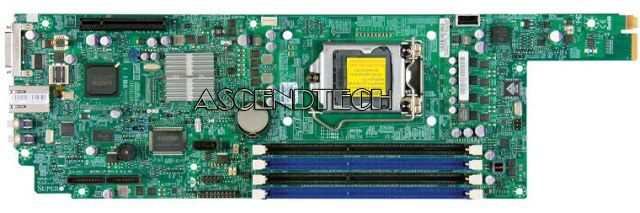

Motherboard	MBD-X9SCD-F
CPU	Intel Xeon processor E3-1200 & v2 series, Intel 2nd Gen. Core i3 & Intel Pentium family processors Socket H2 (LGA 1155)
Memory Capacity (per node)	4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1333/1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated UDIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chipset (per node)	Intel C204 PCH chipset
SATA (per node)	1x SATA DOM
IPMI (per node)	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support Nuvoton WPCM450 BMC
Headers (per node)	1 USB header & 1 Type A USB, TPM ready
Graphics (per node)	Matrox G200eW 16MB DDR2
Super I/O (per node)	Nuvoton WPCM450RA0BX
Network Devices (per node) Micro-LP NIC	Intel® 82580DB GbE controller iSCSI boot and PXE support Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT 3 support for fast, scaleable, and reliable networking VMDq support for better performance of virtualization
Expansion Slots (per node) PCI-Express	1 (x8) PCI-E 3.0 low-profile slot, MicroLP Adapter Matrix
Serial ATA (per node)	2x SATA 3.0 ports (6Gbps)
LAN (per node)	1x RJ45 Dedicated IPMI LAN port
KVM (per node)	1x VGA, 1x COM, and 2x USB 2.0 ports
BIOS Type	64Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 RTC (Real Time Clock) Wakeup

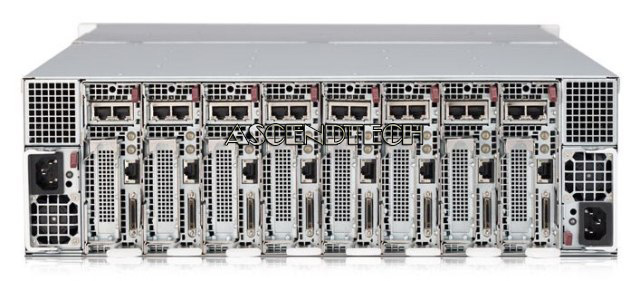

Rear Window (each node) Switch	Power / UID
Height	5.21" (132.5 mm)
Width	17.26" (438.4 mm)
Depth	23.2" (589 mm)
Weight	62.2 lbs (28.21 kg) - barebone
Buttons	Power On/Off button
LEDs	Power LED Node status LED

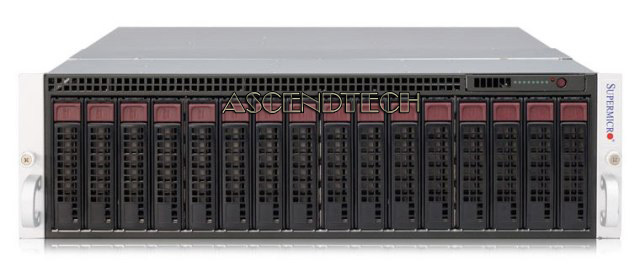

Drive Bays	2x 3.5" hot-swap SATA3 (6Gbps) HDDs per node; up to 16 HDDs total Enterprise SATA HDD only recommended
System Cooling Fans	4x 8cm Heavy duty fans with optimal cooling zone
Power Supply	1620W high-efficiency redundant power supply
AC Input	1000W: 100-120 V, 50-60 Hz, 12-10 Amp 1200W: 120-140 V, 50-60 Hz, 12-10 Amp 1620W: 180-240 V, 50-60 Hz, 10.5-8 Amp
DC Output +5V standby	4 Amp
DC Output +12V	1000W: 84 Amp 1200W: 100 Amp 1620W: 135 Amp
Certification	80PLUS Platinum Certified
CPU	Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	Cooling zone
Temperature	Monitoring for CPU and chassis environment
