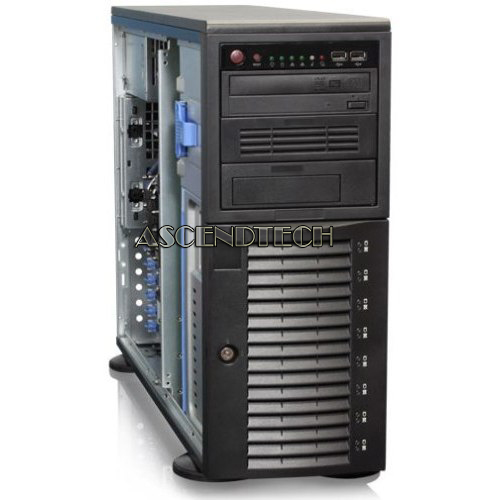

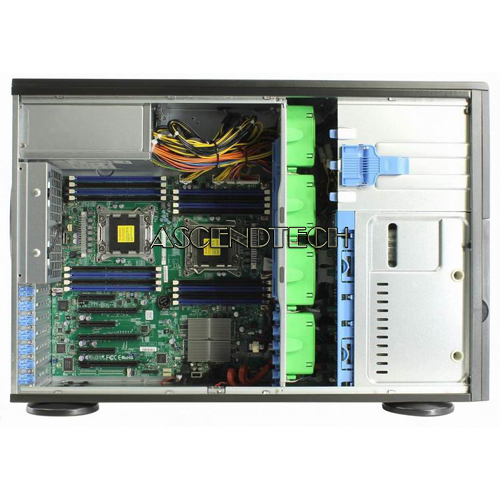

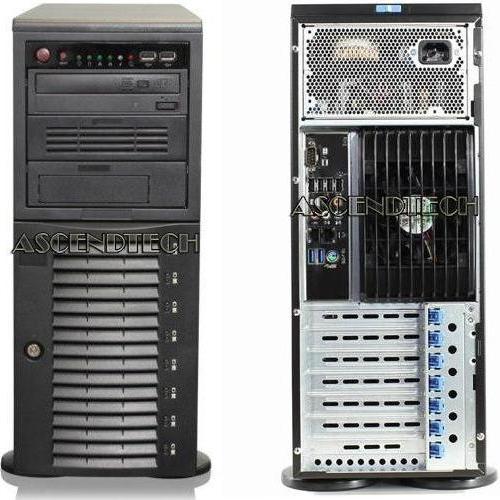

SUPERMICRO 7047A-T 2011 4U/TOWER SERVER

Supermicro SuperWorkstation SYS-7047A-T Dual LGA2011 Xeon 1200W 4U Rackmount/Tower Server Barebone System. Designed for optimal performance, the dual-processor SuperServer 7047 series support the QPI (8.0 GT/s) format Xeon® E5-2600 Series processors in a high-density 4U form-factor. The 7047 SuperServer has excellent expansion capability and feature set.





Key Features:

•  Intel® Xeon processor E5-2600 family; QPI up to 8GT/s
•  Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets
•  Expansion slots: 3 (x16) PCI-E 3.0, 2 (x8) PCI-E 3.0 & 1 (x4) PCI-E 3.0
•  Intel i350 Dual port Gigabit Ethernet
•  2x SATA3 and 8x SATA2 ports

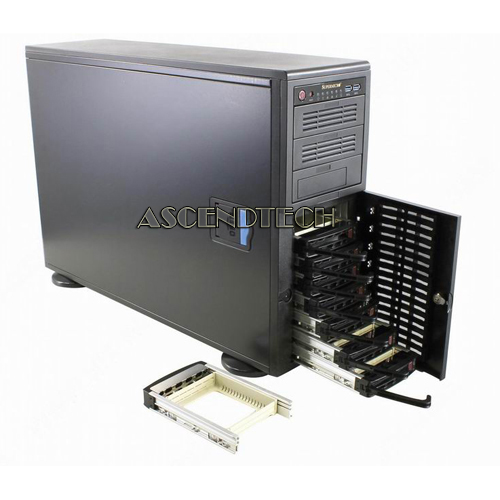

•  8x Hot-swap 3.5" SATA HDD Bays
•  1200W High Efficiency Power Supply 80 PLUS, Platinum Level (94%)
•  Tower or Rackmount

Specifications:

Product	SuperServer SYS-7047A-T
Chassis	4U Rackmountable / Tower (CSE-743TQ-1200B-SQ)

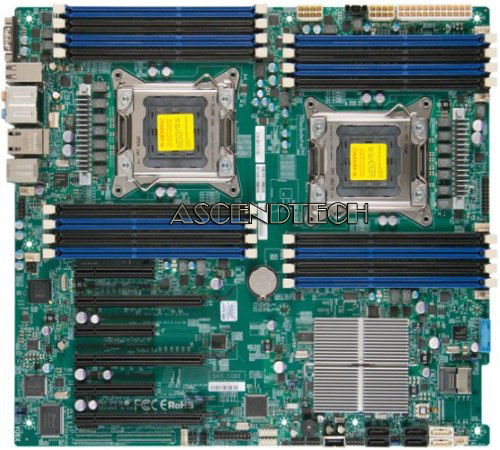

Motherboard	Super X9DAi
CPU	Intel Xeon processor E5-2600 Dual Socket R (LGA 2011)
Cache	Up to 20MB
System Bus	QPI up to 8 GT/s
Memory Capacity	16x 240-pin DDR3 DIMM sockets Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
Memory Type	1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chipset	Intel® C602 Chipset
SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Super I/O	Nuvoton W83627
SATA	2x SATA 3.0 ports (6Gbps) 8x SATA 2.0 ports (3Gbps)
LAN	2x RJ45 Gigabit Ethernet LAN ports
USB	4x USB 3.0 ports   (2 front + 2 via header) 7x USB 2.0 ports   (4 rear + 2 via header + 1 Type A)
Audio	Line-in / Line-out / Microphone Ports
Keyboard/Mouse	PS/2 Keyboard/Mouse port
Serial Port / Header	1x Fast UART 16550 ports
IEEE 1394a	2x Headers
PCI-Express	3 (x16) PCI-E 3.0 slots 2 (x8) PCI-E 3.0 slots 1 (x4) PCI-E 3.0 slot
BIOS Type	64Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI
Height	17.8" (452mm)
Width	7.0" (178mm)
Depth	25.5" (648mm)
Gross Weight	71 lbs (32.2 kg)
Available Colors	Black
Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED
Ports	2x front USB 3.0 Ports
Drive Bays	8x Hot-swap 3.5" SATA Drive Trays
Peripheral Bay(s) [90oRotatable]	2x 5.25" Peripheral Drive Bay 1x 5.25" Bay for Floppy Drive
SAS / SATA Backplane	SAS / SATA Hard Drive Backplane w/AMI MG9072
System Cooling Fans	2x 80mm PWM Super Quiet Fans 1x 92mm PWM Super Quiet Rear Fan
Power Supply	1200W high-efficiency power supply w/ PMBus
AC Input	1000W: 100-114.9 V, 50-60 Hz, 12 Amp 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output 1000W max 1200W max	+3.3V / +5V / +12V / -12V / +5VSB 20A /  20A /   83A /  0.3A /   3A 20A /  20A /   99A /  0.3A /   3A
Note:	Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification	80PLUS Platinum Certified
CPU	Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 6-Phase-switching voltage regulator
FAN	Total of three fan headers supporting up to 8 fans Three 4-pin fan headers 3x fans with tachometer status monitoring Support 3-pin fans (w/o speed control) Low noise fan speed control (4-pin fan only)
Temperature	Monitoring for CPU and chassis environment Thermal Control for 8x fan connectors PECI
Other Features	Chassis intrusion detection Chassis intrusion header
