SUPERMICRO 745TQ-R800 XEON SERVER TOWER
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code SERVTOWRSMX7DWN
Brand Supermicro Computer Inc.
Model X7DWN+ LGA 771 DUAL XEON
Category Socket 771 Server Barebones
Description

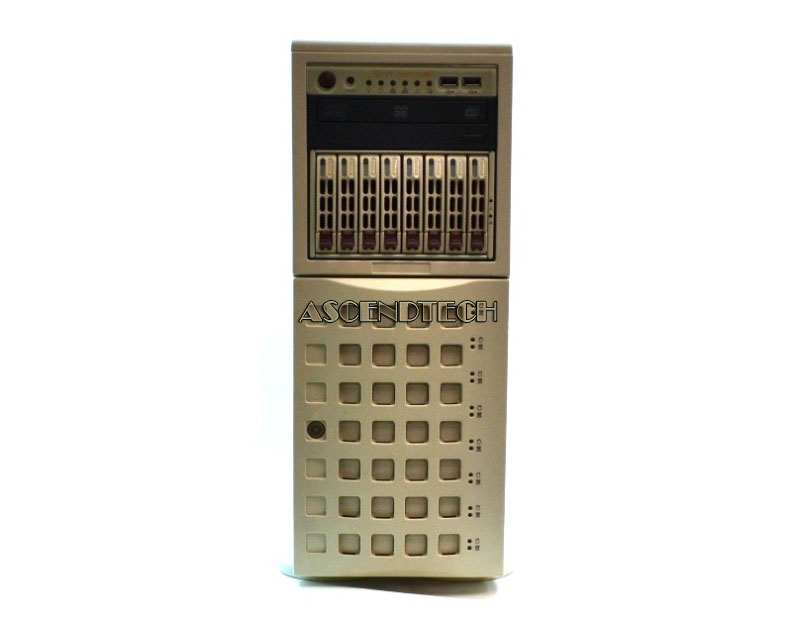

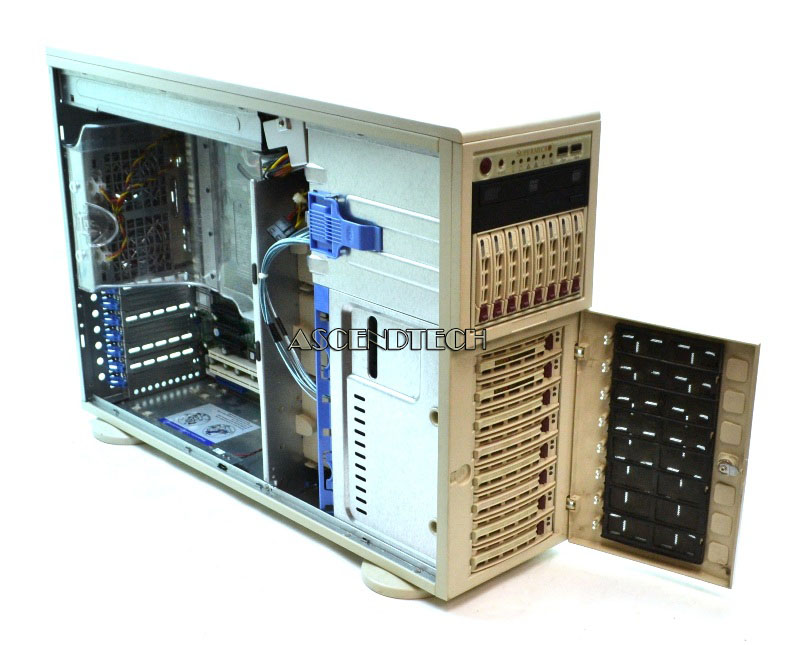

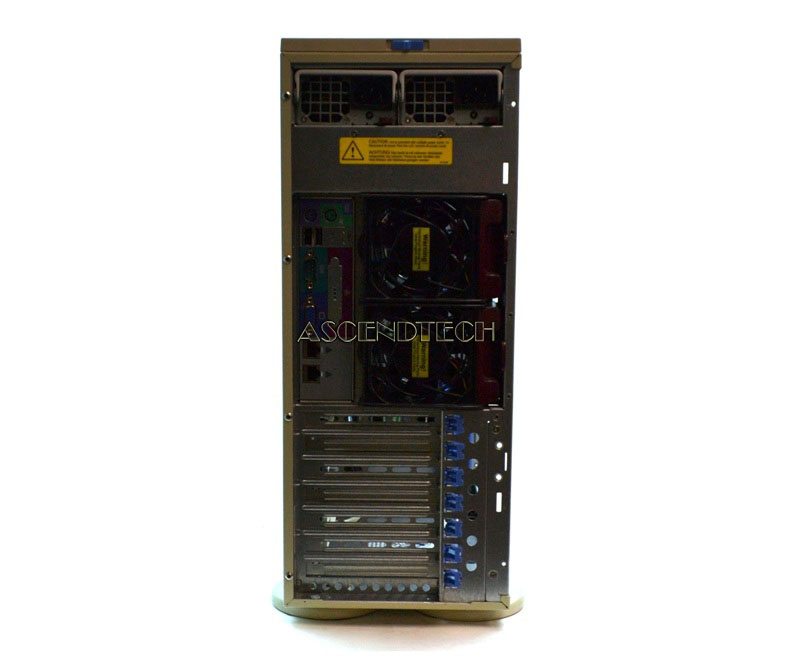

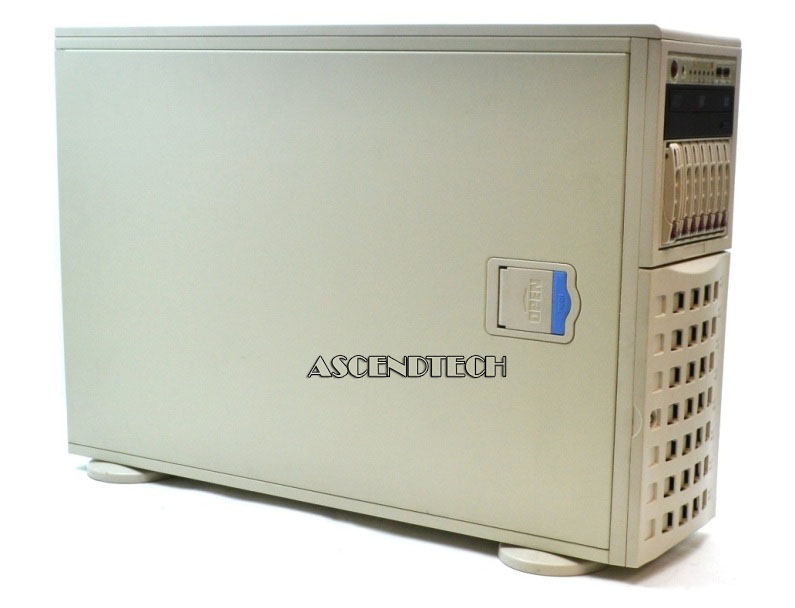

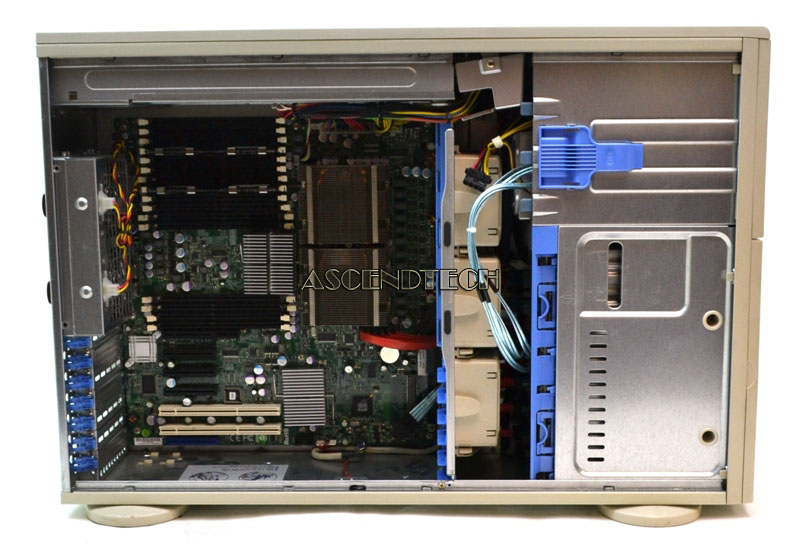

SuperMicro SuperChassis 745TQ-R800 4U Server Tower with Super Micro X7DWN+ LGA771 Motherboard, Dual Intel Xeon Processor E5462 2.80 GHz Processors, 8GB DDR2 667Mhz PC2 5300 240-Pin ECC Memory. Supermicro's SC745 Chassis series is optimized for the latest dual-core Xeon 5000 / 5100 sequence processor system. Designed with 100% cooling redundancy, high-efficiency power supply, hot-plug fans and hot-swappable drive bays, this chassis offers reliable performance with problem-free maintenance.
* Please Note, this unit is used and may have minor scuffs, scratches or dents, but are fully operational and function as intended!
KEY FEATURES:
1. 800W Redundant High-efficiency Power Supplies
2. 8 x 3.5" SAS/SATA Hot-swappable Drive Bays
3. GPU Support
4. Adjustable Air Shroud for Any Configurations
5. 100% Cooling Redundancy
6. Rack mount / Tower Convertible
7. 2x Front USB Ports
8. Locking Bezel with Filter
9. Tool-less operation
10. Full SES2 support is available with SAS motherboards and other compatible components.
SPECIFICATIONS:
| Model | SuperChassis 745TQ-R800 |
| Motherboard | SuperMicro X7DWN+ |
| Processor | • Intel Xeon Processor E5462 (12M Cache, 2.80 GHz, 1600 MHz FSB) |
| Supported Processors | Dual 771-pin LGA Sockets Supports up to Dual Intel 64-bit Xeon processor(s) of the same type below: • Quad-Core Intel Xeon Processor 5400/5300 sequence (Harpertown/Clovertown processor) up to 3.00 GHz • Dual-Core Intel Xeon Processor 5200/5100 sequence (Wolfdale/Woodcrest processor) up to 3.16 GHz |
| System Bus | • 1600 / 1333 / 1066 MHz system bus |
| System Memory | • 8GB 240-Pin DDR2 667Mhz PC2 5300 ECC Memory |
| Memory Capacity | • Sixteen 240-pin DIMM sockets • Supports up to 128 GB 800 / 667 / 533MHz DDR2 ECC FB-DIMM memory • Dual branch memory bus • Memory must be populated in pairs • Memory Sparing supported |
| Memory Type Supported | • 800 / 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 512 MB, 1GB, 2GB, 4GB , 8GB |
| Memory Voltage | • 1.8 V or 1.5 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
| Chipset | • Intel 5400 (Seaburg) chipset • ESB2 |
| SATA | • Intel ESB2 SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support (Wondows only) |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 / 1.5 • 200-pin IPMI slot (SIMSO(+)) • For Dedicated LAN, cable CBL-0177L must be used (cable sold separately) |
| Network Controllers | • Intel® 82575 Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel I/OAT support for fast, scalable, and reliable networking |
| Graphics | • ATI ES1000 controller with 32 MB of video memory |
| Super I/O | • Winbond 83627HG chip |
| Expansion Slots PCI-Express | • 3 (x8) PCI-e slots (2 w/ Gen 2.0) • 1 (x4) PCI-e slot |
| PCI-X | • 2x 64-bit 133MHz PCI-X (3.3V) slots |
| UIO | • 1x UIO slot |
| Serial ATA | • Six Serial ATA ports • Six SATA hard drives supported |
| IDE | • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) including CF(Compact Flash) Card • Compact Flash (40-pin connector, IDE 1, single channel) slot • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| LAN | • 2x RJ45 LAN ports |
| USB | • 2x USB rear ports • 3x USB internal headers • Total 5 USB 2.0 Compliant / 1.1 Compliant |
| VGA | • 1x VGA Port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 1 Fast UART 16550 serial port • 1 Serial header |
| BIOS Type | • 8Mb Flash EEPROM with Phoenix® BIOS • EFI BIOS Support |
| BIOS Features | • Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 |
| Chassis Form Factor | • 4U Rackmountable / Tower |
| Height | • 7.0" (178mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Color | • Beige | Front Panel Buttons | • Power On/Off button • System Reset button |
| Front Panel LEDs | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LEDD • Power Fail LED |
| Ports | • 2x USB Ports |
| Hot-swap Drive Bays | • 8x 3.5" Hot-swap SAS/SATA Drive Bays • SAS or enterprise SATA HDD only recommended • 8x 2.5" Hot-swap SAS/SATA Drive Bays |
| SAS / SATA Backplane | • SAS / SATA Hard Drive Backplane with SES2 |
| Peripheral Bay(s) | • 3x 5.25" Peripheral Drive Bay |
| System Cooling Fans | • 3x 5000 RPM Hot-Swappable Cooling Fans • 2x 5000 RPM Hot-Swappable Rear Exhaust Fan |
| Shroud | • 1x Air Shroud |
| Power Supply | • (1 + 1) Redundant 800W AC power supply w/ PFC |
| AC Voltage | • 100 - 240V, 50-60Hz, 10-4 Amp | CPU Monitoring | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
| FAN Monitoring | • Total of eight fan headers supporting up to 8 fans • Four 4-pin fan headers • Four 3-pin fan headers • 8x fans with tachometer status monitoring • Status monitor for speed control • Support 3-pin fans • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature Monitoring | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x fan connectors • Thermal Monitor 2 (TM2) support • PECI |
| LED | • CPU / System Overheat LED |
| Other Features | • Chassis intrusion detection • Chassis intrusion header • SDDC Support |
