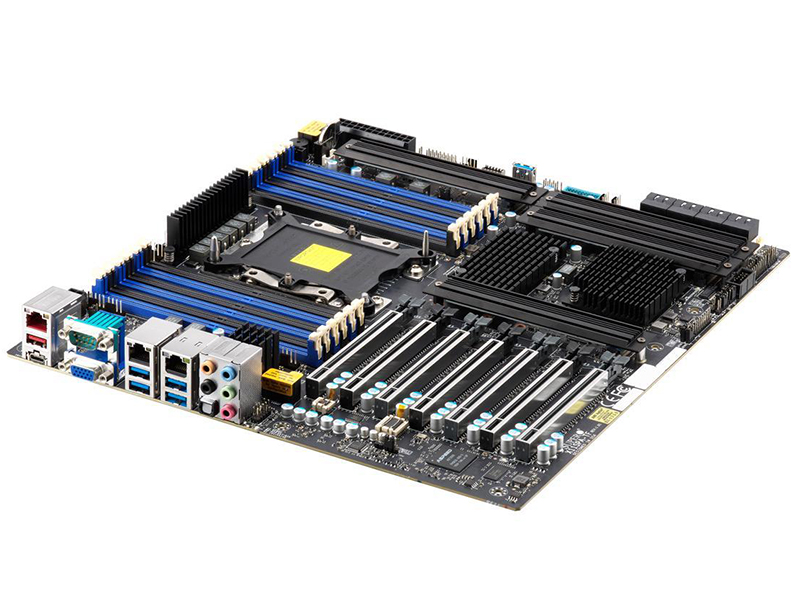

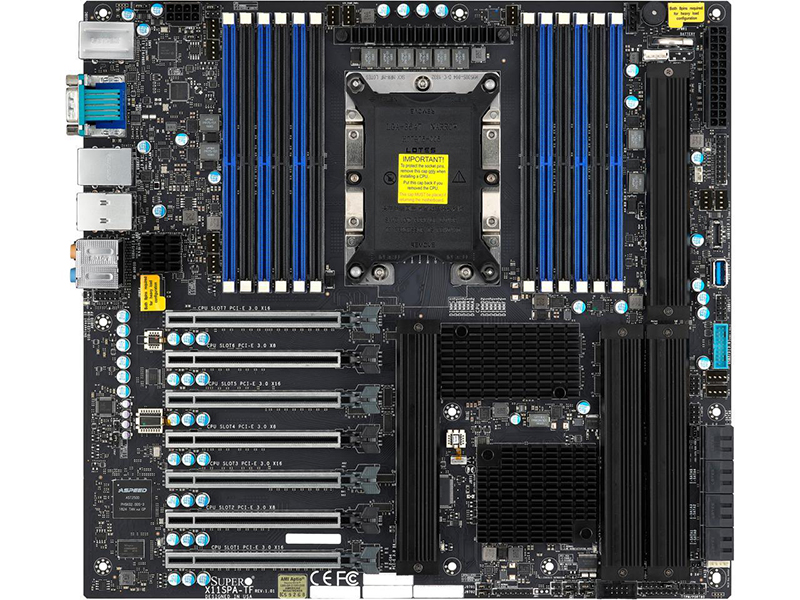

Supermicro MBD-X11SPA-TF-O 7 PCIE Mobo

Model

Brand

SUPERMICRO

Model

MBD-X11SPA-TF-O

Supported CPU

CPU Socket Type

LGA 3647

CPU Type

2nd Generation Intel Xeon Scalable Processors (Cascade Lake-SP), Intel Xeon Scalable Processors.
Single Socket P (LGA 3647) supported, CPU TDP support 205W

Chipsets

Chipset

Intel C621

Onboard Video

Onboard Video Chipset

Aspeed AST2500

Memory

Number of Memory Slots

12×288pin

Memory Standard

DDR4 2933

Maximum Memory Supported

Up to 3TB 3DS ECC RDIMM; Up to 3TB 3DS ECC LRDIMM

Expansion Slots

PCI Express 3.0 x16

4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16 slot)
PCI-E x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16,8/8), Slot#4 shares with Slot#5 (NA/16,8/8), Slot#6 shares with Slot#7 (NA/16,8/8)

Storage Devices

SATA 6Gb/s

8 x SATA 6Gb/s

M.2

M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1
Form Factor: 2242/2260/2280/22110
Key: M-Key
M.2 shares PCI-E lanes with PCI-E x16 slot#1, VROC key is required for Raid. PCI-E x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16,8/8), Slot#4 shares with Slot#5 (NA/16,8/8), Slot#6 shares with Slot#7 (NA/16,8/8)

SATA RAID

0/1/5/10

Onboard LAN

LAN Chipset

AQUANTIA AQC107

Second LAN Chipset

Single LAN with Intel Ethernet Controller I210-AT
Single LAN with Realtek RTL8211E PHY (dedicated IPMI)

Max LAN Speed

10Gbps + Dual 10/100/1000Mbps

Rear Panel Ports

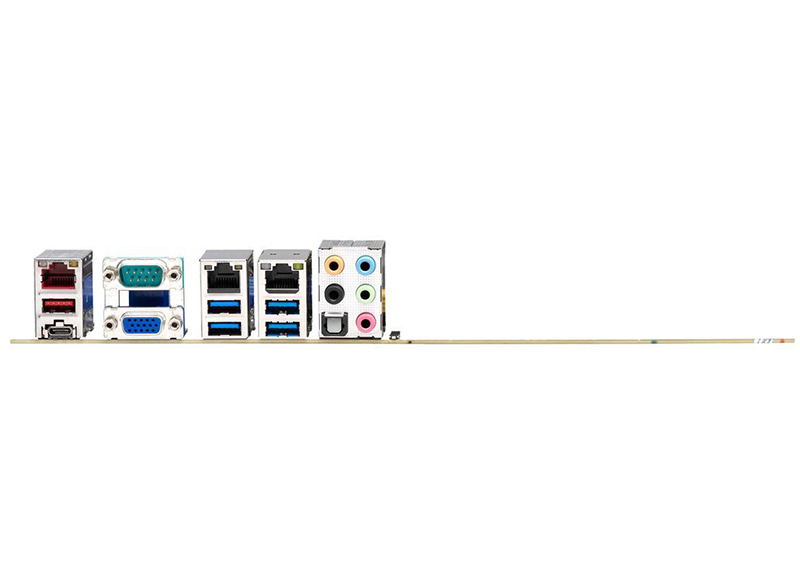

Back I/O Ports

1 x COM (Serial Port) / 1 x D-Sub / 1 x Optical S/PDIF Out / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 3 x LAN (RJ45) / 4 x USB 3.1 Gen 1 Type-A / 5 x Audio Jacks

Internal I/O Connectors

Onboard USB

One front accessible USB 2.0 header with two (2) USB connections
One front accessible USB 3.1 Gen1 header with two (2) USB connections
Two front accessible USB 3.1 Gen2 headers (1 x Type A, 1 x Type C)

Physical Spec

Form Factor

Extended ATX

Dimensions (W x L)

12.0" x 13.0"
