SUPERMICRO MBD-X11SSM-F-O LGA1151 Intel

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Supermicro Mbd-X11ssm-F-O Lga1151 Intel. Model: Mbd-X11ssm-F-O Ddr4 Ecc

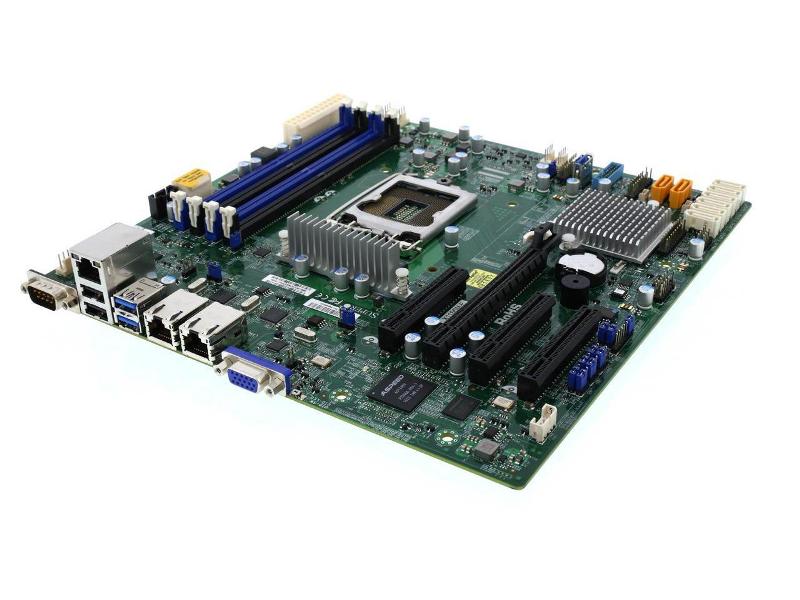

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item Code MBS1151X11SSMFO

Brand Supermicro Computer Inc.

Model MBD-X11SSM-F-O DDR4 ECC

Category Intel Socket Lga1151 Server Motherboards

Description

SUPERMICRO MBD-X11SSM-F-O Micro ATX Server Motherboard LGA 1151 Intel C236

Learn more about the SuperMicro MBD-X11SSM-F-O

Model

Brand: SUPERMICRO

Model: MBD-X11SSM-F-O

Supported CPU

CPU Socket Type: LGA 1151

CPU Type: Intel 7th / 6th Generation Core i3 series
Intel Celeron
Intel Pentium
Intel Xeon Processor E3-1200 v6 / v5 series
Socket H4 (LGA 1151) supported; CPU TDP support 80W

Chipsets

North Bridge: Intel C236

Memory

Number of DDR4 Slots: 4 x 288-pin

DDR4 Standard: DDR4 2400 / 2133 / 1866 / 1600 MHz ECC

Maximum Memory Supported: 64GB

ECC Supported: Yes

Expansion Slots

PCI Express x8: 1 x PCI-E 3.0 x8 (in x16 slot)
1 x PCI-E 3.0 x8

PCI Express x4: 2 x PCI-E 3.0 x4 (in x8 slot)

Storage Devices

SATA: 8 x SATA 6.0Gb/s

SATA RAID: 0/1/5/10

Onboard Video

Onboard Video Chipset: Aspeed AST2400 BMC

Onboard LAN

LAN Chipset: Intel I210-AT

Second LAN Chipset: Intel I210-AT

Max LAN Speed: Dual 10/100/1000Mbps

Rear Panel Ports

COM: 1

Video Ports: 1 x VGA

USB 1.1/2.0: 2 x USB 2.0

USB 3.0: 2 x USB 3.0

Features

Features: Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium

Intel C236 chipset

Up to 64GB Unbuffered ECC UDIMM DDR4 2400 MHz; 4 x DIMM slots

Expansion slots: 1 x PCI-E 3.0 x8 (in x16), 1 x PCI-E 3.0 x8, 2 x PCI-E 3.0 x4 (in x8)

Dual GbE LAN with Intel i210-AT

8 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10

I/O: 1 x VGA, 2 x COM, 2 x SuperDOM, and TPM header

5 x USB 3.0 (2 rear, 2 via header (s), 1 Type A), 6 x USB 2.0 (2 rear, 4 via header (s))

Integrated IPMI 2.0 and KVM with Dedicated LAN

Dimensions

Form Factor: Micro ATX

Dimensions (W x L): 9.6" x 9.6"
