Supermicro X8DTL-iF Rev 2.01 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

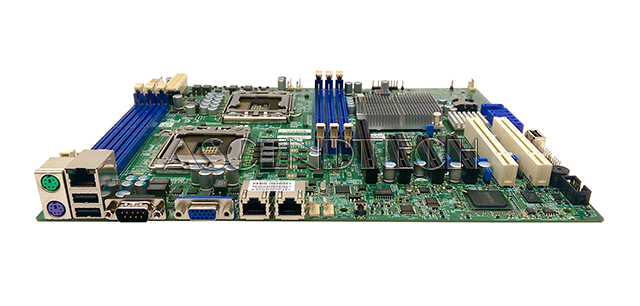

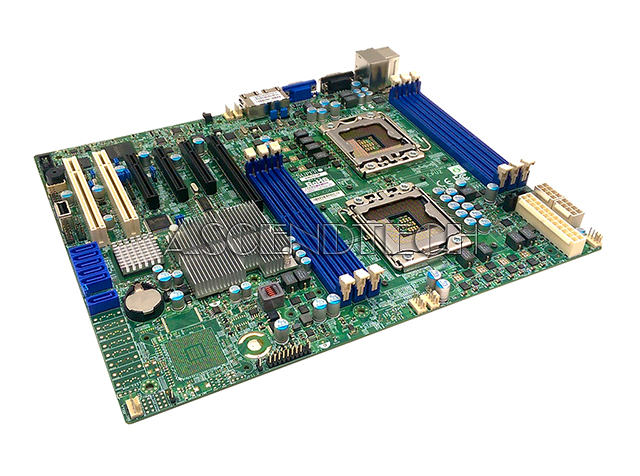

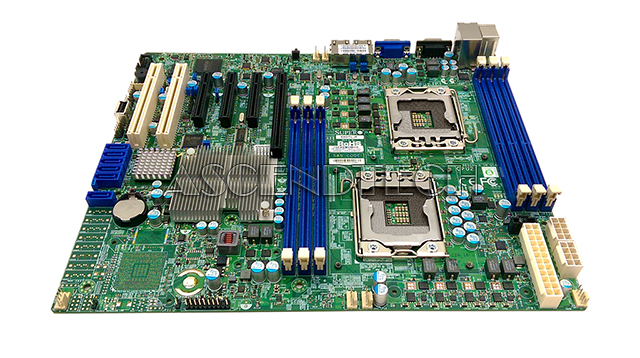

Supermicro X8dtl-If Rev 2.01 Motherboard. Model: X8dtl-If Rev: 2.01
  Enlarge
Supermicro X8dtl-If Rev 2.01 Motherboard. Model: X8dtl-If Rev: 2.01
Supermicro X8dtl-If Rev 2.01 Motherboard. Model: X8dtl-If Rev: 2.01
Supermicro X8dtl-If Rev 2.01 Motherboard. Model: X8dtl-If Rev: 2.01
Supermicro X8dtl-If Rev 2.01 Motherboard. Model: X8dtl-If Rev: 2.01
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBSPMX8DTLIF201
Brand Supermicro Computer Inc.
Model X8DTL-iF Rev: 2.01
Compatible Models 1U Chassis: CSE-512F-600B, CSE-811L-600B, CSE-811TQ-600B 2U Chassis: CSE-825TQ-560LPB, CSE-826A-R1200LPB, CSE-826E1-R800LPB, CSE-826E2-R800LP, CSE-826TQ-R800LPB 3U Chassis: CSE-833T-550B, CSE-833T-650B, CSE-833T-R760B, CSE-835TQ-R800B, CSE-835TQ-R920B, CSE-836A-R1200B, CSE-836E1-R800B, CSE-836E2-R800B, CSE-836TQ-R800B, CSE-933E1-R760B, CSE-933E2-R760B, CSE-933T-R760B, CSE-936A-R1200B, CSE-936A-R900B, CSE-936E1-R900 Tower / 4U Rackmount: CSE-745TQ-920B
Category Intel Lga1366 Motherboards
Condition Like New Grade A
Condition Description Please note, this motherboard comes with I/O Shield Only! No Cables, Manuals, or any other accessories!

Description

Supermicro X8DTL-iF Rev: 2.01 Intel Chipset 5500 Socket Dual LGA1366 DDR3 USB 2.0 SATA ATX Server Motherboard.

Chipset: Intel 5500 (Tylersburg)
Socket: 2x LGA1366
Compatible/Supported CPU: Xeon Processor 5600 Series (Westmere) 5500 Series (Nehalem-EP)
Max Supported Memory: Up To 96 GB ECC Registered, Up To 24GB Non ECC Unbuffered
Number of Memory Slots: 6x DIMM
Memory Type: DDR3 SDRAM
Pins: 240-pin
Speed: 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered
Voltage: 1.5 V / 1.35 V
RAID Support: 0, 1, 5, 10
Video Chipset/GPU Model: Matrox G200eW
Network/Communications: 2x Intel 82574L Gigabit Ethernet Controllers, 1x Realtek RTL8201N PHY
Connectors: 2x USB internal headers, 6x SATA, 1x Fast UART 16550 serial header, 1x main power connector, 2x power supply connectors, 1x COM1/COM2 Serial Port/Header, 6x CPU Fan Headers, 1x PWR LED/Speaker Header, 1x Front Panel Connector, 1x Chassis Intrusion Header, 1x Overheat LED Header, 1x Wake-On-LAN Header, 1x Wake-On-Ring Header
Input/Output Ports: 2x RJ-45 LAN, 2x USB 2.0 , 1x USB on-board, 1x VGA, 2x PS/2, 1x Fast UART 16550 serial
Expansion Slots: 2 (x8) PCI-E 2.0 (1 in x16 slot), 1 (x4) PCI-E 2.0 (in x8 slot), 1 (x4) PCI-E (in x8 slot), 2x 33MHz PCI
Form Factor: ATX
Type: Server Motherboard
