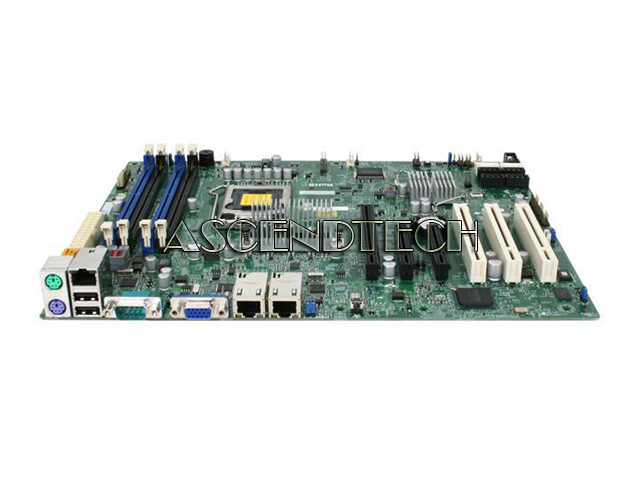

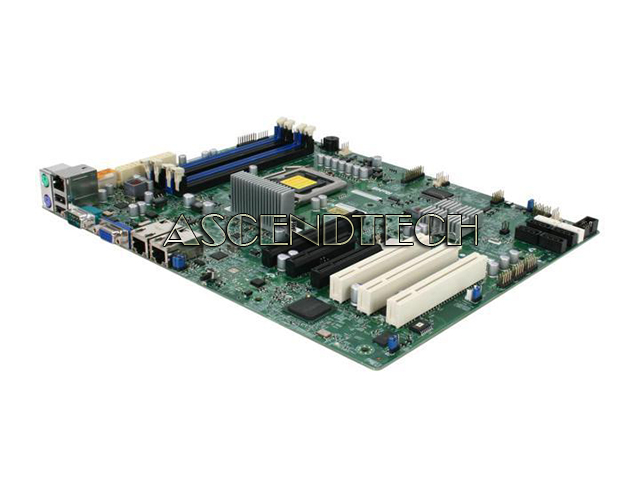

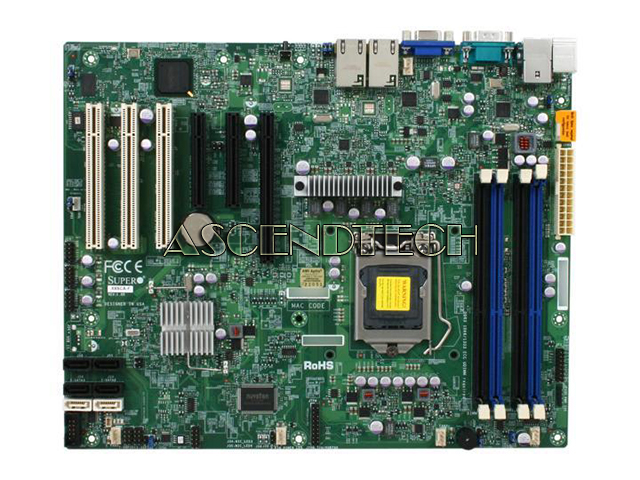

Supermicro X9SCA-F ATX Mboard No I/O

Supermicro X9SCA-F Intel Socket LGA1155 Chipset C204 DDR3 32GB SATA USB 2.0 ATX Motherboard.







Key Features:

1. Single socket H2 (LGA1155) supports Intel Xeon E3-1200 & E3-1200 v2 series, 2nd and 3rd Gen Core i3 processors***, Pentium, Celeron
2. Intel C204 PCH Chipset
3. Up to 32GB DDR3 ECC 1333MHz /1600MHz*** UDIMMs in 4 sockets
4. 1 (x16) PCI-E 3.0***, 2 (x4) PCI-E 2.0 (in x8), and 3 PCI 32-bit slots
5. 2x GbE LAN ports; Intel 82574L
6. 4x SATA (3Gb/s) w/ RAID 0, 1, 5, 10; 2x SATA (6Gb/s) w/ RAID 0, 1
7. 8x USB 2.0 ports (2 rear + 6 via headers)
8. DOM power connector support
9. Integrated IPMI 2.0 with KVM and Dedicated LAN







Specifications:

Model X9SCA-F

Physical Stats

Form Factor ATX
Dimensions 12" x 9.6", (30.48cm x 24.4 cm)

Processor/Cache

CPU
- Intel Xeon processor E3-1200 & v2 series, Intel 2nd Gen and 3rd Gen Core i3, Intel Pentium and Celeron processors *** *
- Socket H2 (LGA1155)

System Memory

Memory Capacity
- 4x 240-pin DDR3 DIMM sockets
- Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V, 1.35V
Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset Intel C204 PCH chipset
SATA
- SATA 2.0 3Gb/s with RAID 0, 1, 5, 10
- SATA 3.0 6Gb/s with RAID 0, 1
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Nuvoton WPCM450 BMC
Network Controllers
- Intel 82574L, 2x Gigabit LAN ports
- Virtual Machine Device Queues High efficient I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA BMC integrated Matrox G200
Super I/O Nuvoton WPCM450RA0BX

Input / Output

Serial ATA 6x SATA ports total (4x 3Gb, 2x 6Gb)
LAN
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
USB 8x USB 2.0 ports total (2x rear + 6x via header)
VGA 1x VGA port
Serial Port / Header 2x Fast UART 16550 serial port (one header and one rear port)
DOM 1x DOM (Disk on Module) power connector
TPM 1x TPM Header

Expansion Slots

PCI-Express
- 1 (x16) PCI-E 3.0 slot***
- 2 (x4) PCI-E 2.0 (in x8) slots
PCI 3 PCI 32-bit slots

System BIOS

BIOS Type 32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
- DMI (SMBIOS) 2.7
- ACPI 4.0
- PCI 2.3
- USB Keyboard support

Management

Software
- IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- SuperDoctor III
- Watch Dog
- NMI
Power Configurations
- ACPI / ACPM Power Management
- Main Switch Override Mechanism
- Power-on mode for AC power recovery
- Internal/External modem ring-on

PC Health Monitoring

Voltage
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
- 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
- Total of 5 fan headers supporting up to 5 fans
- Five 4-pin fan headers
- 5x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Support 3-pin fans (w/o speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- FC temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
LED
- CPU / System Overheat LED
- +5V Standby alert LED
Other Features
- Chassis intrusion detection
- Chassis intrusion header

* Per Intel's spec, for platforms using C202/C204 PCH:
1) Intel i5/i7 CPUs are not supported
2) Intel E3-12x5 series processors which have integrated graphics support are not recommended.
** Supermicro X9SCA-F motherboard is using a dedicated graphic from Matrox G200eW.
*** BIOS rev. 2.0 or above is needed to support new E3-1200 v2 CPUs, which supports PCI-E 3.0 & DDR3 1600.
