TEAC DW-224E DVD/CD-RW COMBO W/OUT BEZEL

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

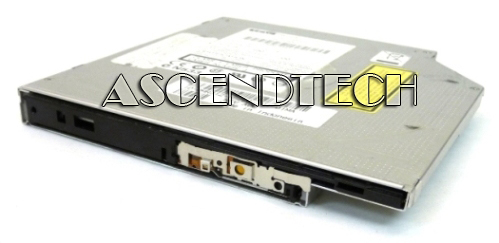

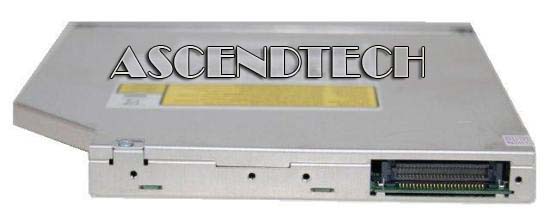

*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeLTPDVDCDW224EWO
BrandDell Computers
ModelDW-224E 1977098V-D5 MR312
CategoryLaptop Optical Drives

Description

Dell DW-224E DVD/CD-RW Slim Combo Drive 8x24x10x24 for Notebook Laptop Computers. The drive features a fast writing speed of 8X for CD-R and CD-RW, and employs a full 24X speed maximum playback for CD-ROM and 8X for DVD-ROM. This drive combines key technologies CD-RW and DVD-ROM including lasers and LSIs from both and a combination pick-up head. The drive adheres to the DVD Forum's DVD-ROM specifications.

Brand: Dell
Manufacturer: Teac
Model: DW-224E
Part Number: 1977098-D5
Type: Internal
Interface: Enhanced-IDE (ATAPI)
Dell Part Numbers: MR312 0MR312

* This Optical Drive Does Not Include the Front Bezel / Face. In most instances the original bezel from the old drive can be removed and reused on a new drive.

Features:

  • 24x speed writing for CD-R media and 10x speed writing for CD-RW media
  • 8x speed reading for DVD-ROM, DVD-R and DVD-RW disc
  • Buffer underrun Prevention
  • Supporting the disc-at-once, session-at-once, packet write, and track-at-once recording mode
  • Horizontal and vertical mounting for most system configuration
  • IDE/ATAPI interface


Specifications:

Optical Drive Speed:
  • 24x 10x 24x CD-R/RW
  • 8x DVD-ROM
  • 5x DVD-RAM
    • Data Transfer Rate:
  • 1545KBps to 3600KBps Read Sustained CD-ROM Mode 1
  • 4469KBps to 10861KBps Read Sustained DVD-ROM
    • Buffer:
  • 2MB
    • Access Time:
  • 85 ms CD-ROM Typical Random Stroke
  • 110 ms DVD-ROM Typical Random Stroke
    • Media Load Type:
  • Drawer Type
    • Formats Support:
  • CD-DA
  • CD-ROM (Mode 1, Mode 2)
  • CD-ROM XA Mode 2 (Form 1, Form 2)
  • Photo CD
  • Enhanced CD
  • DVD-Video
  • DVD-ROM
  • DVD-R
  • DVD-RW
  • CDR
  • CDRW
    • Recording Method:
  • Disk-at-once
  • Track-at-once
  • Session-at-Once
  • Packet Write
  • Multisession
  • Mt. Rainier
    • Mount Type:
  • Vertical
  • Horizontal
    • Platform Support:
  • PC
    •
    Interfaces/Ports:
    Interfaces/Ports:
  • 1 x EIDE/ATAPI
    •
    Controls/Indicators:
    Indicators & Controls:
  • LED Indicator
  • Eject Button
    •
    Reliability:
    MTBF:
  • 60000 Hour(s)
    •
    Power Description:
    Input Voltage:
  • 5 V DC ±5%
    •
    Environmental Conditions:
    Temperature:
  • 5 °C (41 °F) to 45 °C (113 °F) Operating
  • -20 °C (-4 °F) to 60 °C (140 °F) Non-operating
    • Humidity:
  • 8% to 80% Non-condensing Operating
  • 5% to 95% Non-condensing Operating
    •
    Physical Characteristics:
    Color:
  • Black Bezel
    • Form Factor:
  • Internal
    • Dimensions:
  • 0.49" Height x 5.03" Width x 5.09" Depth
    • Shipping Dimensions:
  • 3" Height x 7.75" Width x 10" Depth
    • Weight:
  • 0.46 lb
    • Shipping Weight:
  • 0.7 lb

    •
