Thermaltake BigWater 735 Liquid Cooling

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

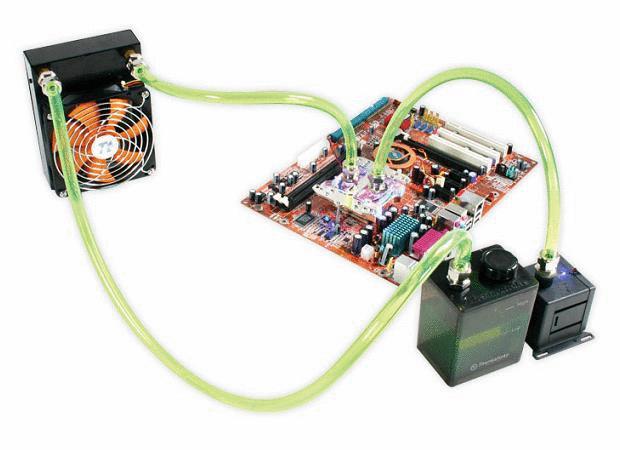

Thermaltake Bigwater 735 Liquid Cooling
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code CFNTHTBIGWAT735
Brand Thermaltake
Model Thermaltake BigWater 735
Category Liquid Cooling Kits

Description

Thermaltake's Bigwater 735 is designed to harness the extreme heat from powerful systems based on Intel PR LGA775/Intel BTX platforms and all AMD K8 series. This sensational liquid cooling system features a high-performance radiator with a 120mm silent VR fan (1300 - 2400 rpm) and a superb liquid pump with 400 L/hr. The Bigwater 735 sports an easy-to-refill, high-capacity liquid tank capable of holding 350cc! Plus, the Bigwater 735 boasts an incomparable copper waterblock with a blue LED acrylic covering that illuminates the CPU. An increased number of water channels within the waterblock greatly enhances thermal efficiency. A durable 3/8-inch tub prevents wear and tear, clogs and over bending. Optimize your system's performance with the masterful Bigwater 735 liquid cooling system.

Specifications:

  • Mfr Part Number: CL-W0075
  • Features:
    • World 1st liquid cooling system supports ATX / BTX motherboard
    • Application for Intel P4 LGA775 Intel BTX platform and all AMD K8 series
    • Remarkable 120mm Radiator: High performance radiator with a 120mm silent VR fan (1300~2400rpm)
    • Superb Liquid Pump with 400L/hr:
      • Silent and powerful P400 pump provides superb reliability
      • The pedestal can be secured onto the case by screws
      • The ceramic bearings significantly extend the life-expectancy of the pump
      • Thoughtful inlet and outlet design prevents air blocks from the water flow
    • Exceptional Liquid Tank :
      • High capacity liquid tank capable of holding 350c.c. of liquid for continuous usage
      • Easy to refill
    • Second-to-none Copper Water Block :
      • With blue LED acrylic covering illuminates the CPU
      • Increased number of water channel within the water block greatly enhances the thermal efficiency
      • Circle base of water block is applicable to BTX motherboard
    • Durable 3/8" Tube:
      • Special material to prevent wear & tare from being clogged up from over bending
      • User Friendly Installation, tool-less connector design
  • CPU Application: AMD all K8 series; Intel LGA775; Intel BTX platform
  • Waterblock:
    • Material: Copper & Acrylic
    • Connector: 3pin
    • LED: Blue LED
    • Dimension: 60 x 78 x 23.5 mm
  • Pump:
    • Bearing: Ceramic bearing
    • Maximum Capacity: 400 L/hr
    • Rated Voltage: DC 12V
    • Connector: 3pin & 4pin
    • LED: Blue LED
    • Noise: 16 dBA
    • Life time: 70000 hr (MTBF)
    • Dimension: 272 x 120 x 35 mm
  • 120mm Radiator:
    • Material: Aluminum
    • Fan Dimension: 120 x 120 x 35 mm
    • Fan Speed: 1300 ~ 2400 RPM
    • Max Air Flow: 38.6 CFM ~ 93.7 CFM
    • Noise: 16 ~ 30 dB
    • Fan Connector: 4pin
    • Dimensions: 122 x 35 x166 mm
  • Liquid Tank:
    • Capacity: 350 c.c
    • Quick install connector: For 9.5mm ID(3/8") tube
    • Dimensions: 86 x 66 x 110 mm (except connector)
  • Tube:
    • Material: Green UV
    • Dimensions: 9.5mm ID(3/8") tube
  • Coolant:
    • Capacity: 500 c.c
    • Major Material: Ethylene Glycol
