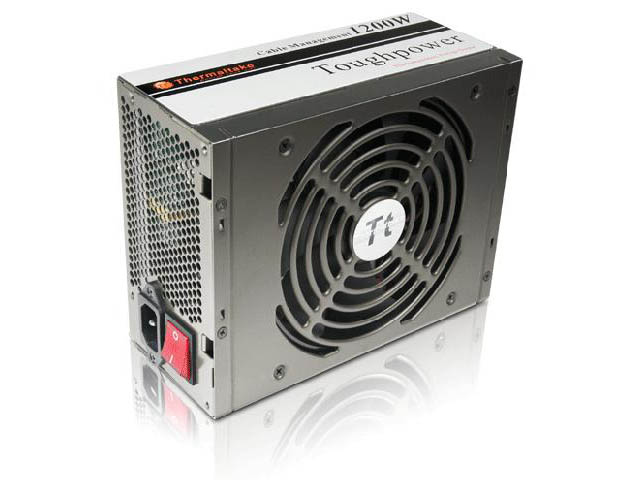

Thermaltake Toughpower 1200W w/ 8pin

The Thermaltake Toughpower 1200W PSU is a power house. This PSU comes equipped with four +12v rails and supports 6 PCIe devices - 3x 6-pin and 3x 8-pin. It is mostly modular and features a nice large fan that provides very good cooling.

Specifications:

• Mfr Part Number: W0133RU
• Features:
  • Stable 1200W continuous output (at 50°C operating environment)
  • Four independent & dedicated +12V rails(12V1,12V2,12V3,12V4) provides superior performance for PC system.
  • NEW! Three 8pin and three 6pin PCI-E connectors design supports Multi-GPU Graphic card.
  • Supports Dual Core CPU / Quad Core CPU / Nvidia SLI & Quad SLI and all Multi-Core GPU technologies.
  • Modularized Cable Management to eliminate clutter and improve airflow inside the case.
  • Independent Voltage Circuit: offers unflappable current delivery under heavy load.
  • Strict voltage regulation (±3%): provides steady voltage for system.
  • Active Power Factor Correction (PF>0.99) and high efficiency (upto 87%).
  • Industrial grade components (capacitor, transformer, etc)
  • High reliability: MTBF >120,000 hours.
  • Quiet and reliable 14cm ball-bearing fan.
  • Protections: Over Current, Over Voltage, Under Voltage, Over Temperature, Over Power and Short-Circuit protection.
  • Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.
• Maximum Power: 1200 W
• Input:
  • Voltage: 115~230 V
  • Current: 15 A
  • Frequency Range: 47~63 Hz
  • MTBF: 120,000 hrs minimum (at 25°C)
• Output: +5Vsb operate at 3.5A max load base on PS-ON mode. If PS-OFF +5Vsb only operate at 3A max load
• Switches: ATX Logic on-off additional power rocker switch
• PFC: Active PFC (PF > 0.9)
• Cooling System: 140mm Fan, 2300RPM ± 10%
• Noise: 16 dBA at 1300 RPM
• P. G. Signal: 100~500 ms
• Efficiency: upto 87%
• Hold-up Time: 16 ms
• Connectors: 1x 20+4pin Main Power; 1x 4+4pin 12V; 1x 8pin 12V; 8x HDD; 2x FDD; 8x SATA; 3x 6pin PCI-E, 3x 8pin PCI-E
• Dimensions (WxLxH): 160 x 200 x 86mm
