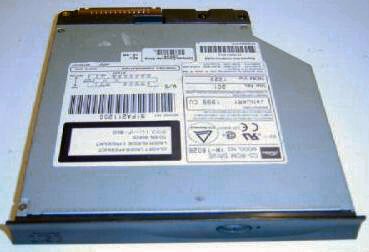

Toshiba 24X CD-ROM Drive XM-1802B
Actual product may vary.
Description
Toshiba 24X CD-ROM Drive XM-1802B. Toshiba's XM-1802B super-slim CD-ROM drives bring leading edge performance to notebook computer manufactures. The XM-1802B drives have a 110ms random access time and 100ms random seek time. Constant angular velocity enables a 24X transfer rate, providing revolutionary power and speed for internal drives of its size. The drive's ATAPI interface, super-small size, and low weight make them a perfect fit for today's sub notebook computers.
Compatible Models for Compaq: Presario 1200 Presario 1230 Presario 1234 Presario 1235 Presario 1236 Presario 1237 Presario 1238 Presario 1240 Presario 1242 Presario 1250 Presario 1252 Presario 1600 Presario 1670.
This Drive pulled from working Laptop. Item shall come as pictured.
Specifications:
| Access Time: | |
| Average Random Seek | 110ms (24X) |
| Average Random Access | 100ms (24X) |
| Full Stroke | 230ms (24X) |
| Data Transfer Rate: | |
| Sustained Data Transfer | 3,600 KB/s (24X) |
| Sustained PIO host Transfer Rate | 16.7 MB/s (PIO Mode 4) |
| Other: | |
| Spin Up Time | 2.7s (24X) |
| Rotational Speed | XM-1802B: 5,250 rpm (17X avg) XM-1702B: 5,120 rpm (17X avg) |
| Buffer Cache Size | 128K |
| Physical Characteristics: | |
| Dimensions | 5.0" x 0.5" x 5.1" (128mm x 12.7mm x 129mm) |
| Weight | XM-1802B: 0.51 lbs (0.23 kg) XM-1702B: 0.55 lbs (0.25 kg) |
| Mounting Orientation | 15 Horizontal / 15 Vertical |
| Audio: | |
| Output | XM-1802B: 0.775 volt (rms typ) XM-1702B: 1.000 volt (rms typ) |
| Distortion (1kHz) | 0.03% (at 1kHz with 20kHz LPF) |
| Ambient Temperature: | |
| Operating | 41 to 122F (5 to 50C) |
| Storage | -4 to 149F (-20 to 65C) |
| Shipping | -40 to 149F (-40 to 65C) |
| Operating Humidity (non-condensing) | 8% to 80% (wet bulb 27C max.) |
| Error Rates: | |
| Hard Read Error - Mode 1 | 10-15 |
| Hard Read Error - Mode 2 | 10-12 |
| Seek Error | 10-6 |
