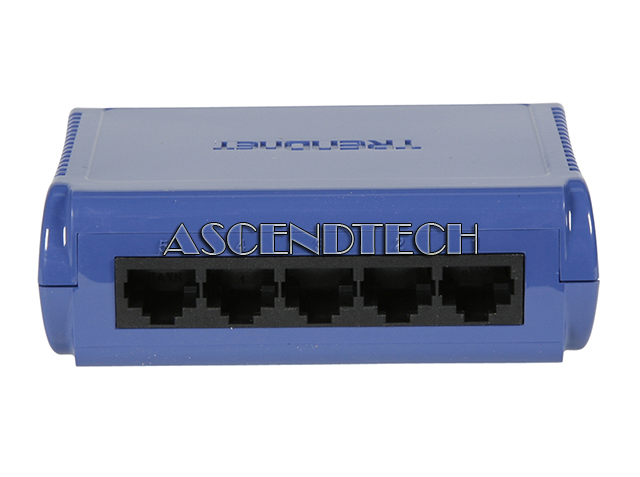

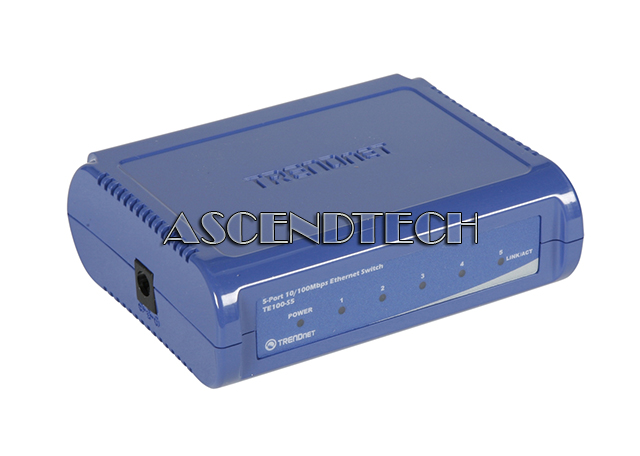

TRENDnet TE100-S5 Fast Ethernet Switch

TRENDnet TE100-S5 5-Port RJ-45 10/100Mbps LAN Fast Ethernet Switch TE100-S5/AS Ver.1.1R. TE100-S5 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug and Play provides cost-effective and high performance solutions.

Model Number: TE100-S5
TRENDnet Part Number: TE100-S5/AS Ver.1.1R







Features:

Hardware
- 5 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports
- Compliant with IEEE 802.3 / IEEE 802.3u standards
- Provide 2K MAC address entries
Functions
- IEEE 802.3x Flow Control support
- Store-and-Forward Switching method
Easy of Use
- Plug & Play







Specifications:

Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

Network Media
Ethernet: Cat. 5 up to 100m
Fast Ethernet: Cat. 5, 5e, 6 up to 100m

Data Transfer Rates
Ethernet: 10Mbps/20mbps (Half/Full Duplex)
Fast Ethernet: 100Mbps/200mbps (Half/Full Duplex)

Switch Fabric 1Gbps Forwarding Capacity

Topology Star

Interface 5 10/100Mbps Auto-MDIX RJ-45 Ports

Filtering Table 2K Entries Per Device

Power Consumption 2.8Watts (max)

Power Adapter 5V 800mA external power adapter

Diagnostic LED Power, Link/ACT, 100Mbps

Dimensions 100 x 78 x 31mm (3.9 x 3 x 1.2in.)

Weight 4.50oz (128g)

Humidity
Operating: 10% - 90% Non Condensing
Storage: 5% - 90% Non Condensing

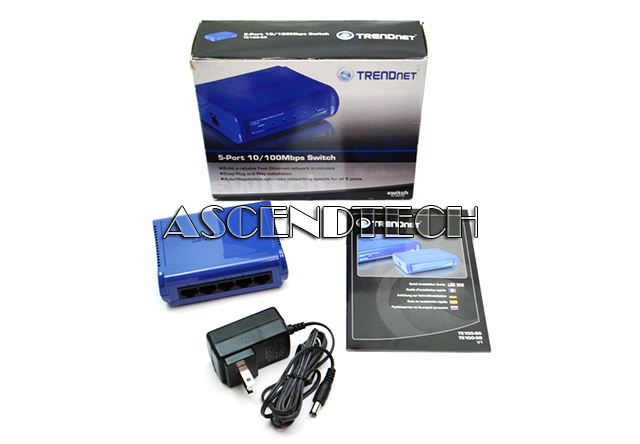

What's in the Box TE100-S5 Switch, Multi-Language Quick Installation Guide, Power Adapter
