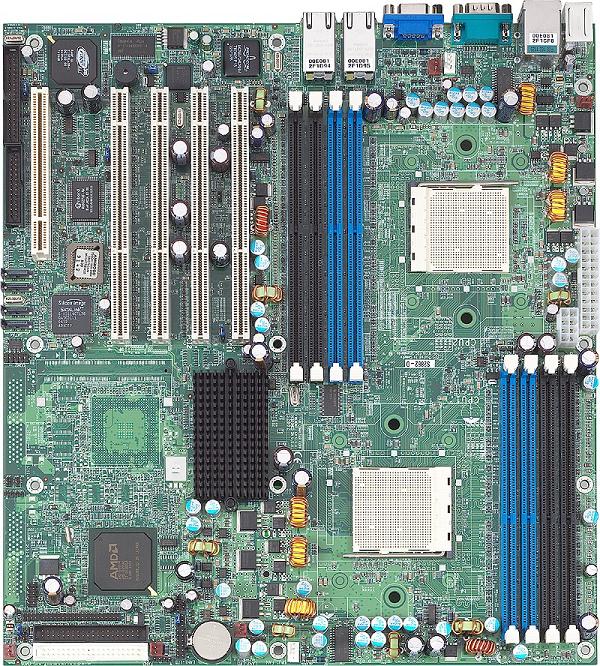

Tyan S2882G3NR Thunder K8S Pro Mboard

Tyan S2882G3NR Thunder K8S Pro S2882 Motherboard. Tyan AMD Opteron™ 64-bit architecture, the Thunder K8S Pro (S2882) is a powerful and stable server platform for today's demanding performance requirements. Thunder K8S Pro (S2882) is a specially designed platform with competitive features such as eight DIMM slots for 16GB of excellent memory performance, IPMI compliant server management support, and Gigabit Ethernet/Fast Ethernet LAN ports for powerful broadband connectivity.  The Thunder K8S Pro (S2882) is ideal choice for 1U and 2U server environments.

Related Part Numbers: S2882G3NR K8S Pro S2882 31-00-00158



Specifications:

Processor
 • Dual 940-pin ZIF sockets
 • Supports up to two AMD Opteron™ processors
 • Two onboard 3-phase VRMs
 • 128-bit DDR dual-channel memory controller
    (integrated in CPU)
Chipset
 • AMD-8131™ HyperTransport™ PCI-X Tunnel
 • AMD-8111™ HyperTransport™ I/O Hub
 • Winbond™ W83627HF Super I/O ASIC
 • Analog Devices ADM1027 Hardware Monitoring IC
Memory
 • 128-bit DDR memory bus
 • Eight 184-pin 2.5-Volt DDR DIMM sockets
    - each CPU controls four
 • Supports up to 16GB of Registered DDR
 • Supports ECC type memory modules
 • Supports PC3200 / 2700 / 2100 / 1600 DDR
Expansion Slots (Total of five usable slots)
 • Two independent PCI-X buses
 • PCI-X bridge A supports 64-bit 133/100/66/33
     MHz with two 3.3V PCI-X slots
     (one with ZCR support - option)
 • PCI-X bridge B supports 64-bit 133/100/66/33
     MHz with two 3.3V PCI-X slots
 • One legacy 32-bit 33 MHz (5V) PCI  slot
Back Panel I/O Ports
 • Stacked PS/2 mouse and keyboard ports
 • Stacked two USB v1.1 ports + 1 RJ45 10/100
     Base-T port w/ activity LED
 • Two 9-pin UART serial ports
 • One 15-pin VGA port
 • Two RJ45 10/100/1000 Base-T ports with
     activity LED
Integrated I/O
 • One floppy connector supports up to two drives
 • One 9-pin serial ports connector
 • One 25-pin parallel port connector
 • Four USB v1.1 ports
 • Three front panel LAN activity LED connectors
System Management
 • Seven 3-pin fan headers with tachometer
    monitoring
 • Five fan headers with (PWM) speed control
 • One 2-pin Chassis Intrusion header
 • Temperature, voltage and fan monitoring
Integrated Enhanced IDE Controller
 • Dual IDE channels supports up to four EIDE
    devices
 • Supports for UDMA 33/66/100/133 IDE drives
    and ATAPI compliant devices
Integrated PCI Graphics
• ATI® RAGE™ XL PCI graphics controller
• 8MB Frame Buffer of video memory
Integrated LAN Controllers
• Broadcom BCM5704C dual-channel GbE
- Two RJ-45 LAN connectors with LEDs
- Connected to PCI-X Bridge A
• Intel 82551QM 10/100 LOM
- Operating at 32-bit/33MHz PCI bus
Integrated SATA Controller
• Silicon Image Sil 3114 SATA controller
• Supports four-ch, SATA RAID (RAID 0, 1, 0+1)
• Total of four 7-pin SATA 1.0 connectors
• Supports up to four Serial ATA150 drives
• Connected to legacy 32-bit 33MHz PCI bus
Integrated Dual Channel SCSI (option)
• Adaptec AIC-7902W Ultra 320
SCSI controller
• Connects to PCI-X Bridge A
• Adaptec® zero-channel RAID technology support
Intelligent Platform Management Interface Header
• TYAN Server Management Daughter card
(optional) supports features listed below via
IPMI header (SMDC/TSO Support)
• QLogic™ Zircon Baseboard Management
Controller (BMC)
• Tailored for IPMI highest 1.5 Spec.
• Supports KCS and BT styles
• Flexible Windows/Linux Management Solution
• Supports RMCP and SNMP protocols
• Supports ASF standard and EMP
• I2C serial multi-master controllers and UARTs
• Build-in IPMB connector
• Remote power on/off and reset support
(IPMI-over-LAN)
BIOS
• AMI® BIOS 8.0 on 4Mbit LPC Flash ROM
• Supports APM 1.2 & ACPI 1.0
• Power Management S1, S4, and S5 support
Form Factor
• Extended ATX footprint
(13" x 12", 304.8x330.2mm)
• EPS12V (24pin + 8pin) power connectors
