TYAN S2927G2NR-E AMD Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBTYNS2927G2NRE
Brand Tyan Computer Corp.
Part Number S2927G2NR-E
Condition Like New Grade A
Condition Description Please Note, Motherboard and I/O shield only! No Cables, Manuals, or any other accessories!
Description

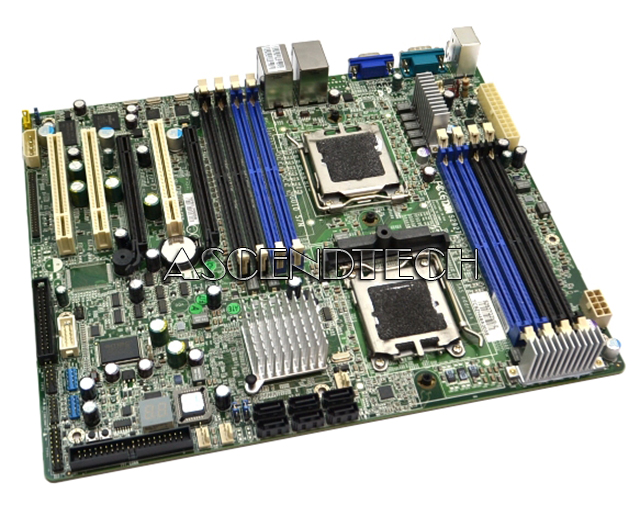

TYAN S2927G2NR-E Thunder n3600B AMD Socket 1207(F) Dual Opteron NVIDIA nForce Professional 3600 ATX Server Motherboard.
Chipset: NVIDIA NFP3600
Socket: Dual LGA 1207-pin
Compatible/Supported CPU: AMD 45nm Quad-Core Opteron 2300/2400 Series Processors
Max Supported Memory: Up to 32GB
Number of Memory Slots: 8x DIMM slots
Error Correction (ECC): Registered ECC DDR2 / 800/667/533
Voltage: 1.8V
Storage Capacity: 6x SATA, 1x ATA 133 2 Dev. Max
RAID Support: RAID 0/1/0+1/5 (NV RAID)
Video Chipset/GPU Model: XGI Z7
Graphics Memory: 16MB
Maximum Resolution: 1600x1200
Wireless Lan Support: Marvell 88E1116
Input/Output Ports: 8x USB2.0 ports (4 at rear, 4 via cable), 2x ports (1 at rear, 1 via cable), 1x D-Sub 15-pin VGA port, 2x GbE ports, 1x PS/2 connector, 1x 2x9-pin TYAN front panel header (TYFP-I), 1x FDD connector , 1x IDE connector , 6x SATA-II connectors, 1x SO-DIMM slot for optional TYAN SMDC M3295-2/ M3296 , Universal 24-pin + 8-pin power connectors / EPS12V / 4-pin auxiliary power connector, 1x 2x25-pin header for TYAN M3291 SMDC, 1x 1x4-pin header
Expansion Slots: 1x PCI-E x16 slot 1x PCI-E x16 slot (with x8 link) 3x PCI 32-bit slots
Form Factor: ATX
