Ultra AD-5520N2-36 600 Watt Power Supply
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Description
Ultra AD-5520N2-36 600 Watt Black ATX Power Supply. Provide sufficient power for your PC using the OEM LSP 600-Watt ATX Power Supply. This ATX power supply keeps your PC performing seamlessly by delivering 600W of energy. For flexibility, you can set its voltage settings to either 115 VAC or 230 VAC with its 115/230 VAC Voltage select switch. To keep the PSU up and running for long hours of operation, it comes with an efficient 135mm cooling fan. Let your PC operate more effectively; choose the OEM LSP 600-Watt ATX Power Supply.
Features:

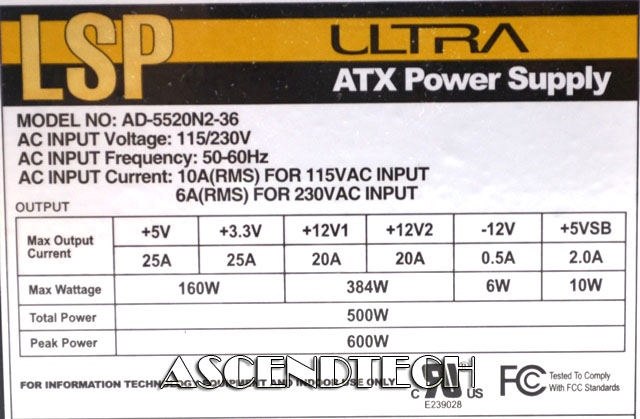

Specifications:
| Form Factor | ATX |
| Peak Wattage | 600W |
| Modular Cabling | No |
| Fan | 135 mm |
| Input Voltage | 115 ~ 230V |
| Input Frequency | 50-60Hz |
| Input Current | 10A(RMS) For 115VAC 6A(RMS) For 230VAC |
| +3.3V | 25A |
| +5V | 25A |
| +12V | 20A |
| -12V | 0.5A |
| +5VSB | 2.0A |
| Dimensions | 3.34" (85mm) H x 5.90" (150mm) D x 5.51" (140mm) W |
| AC Input | |||||||
| DC Output | +5V | +3.3V | +12V1 | +12V2 | -12V | -5V | +5VSB |
| Max Output Current | 25A | 25A | 20A | 20A | 0.5A | - | 2.0A |
| Total Power | |||||||
| Peak Power | |||||||
Connectors:
 |  |  |  |  |  |  |
 |  |  |  |  |  |  |
| 20+4 pin Motherboard Connector | 8-Pin EPS Connector | 6-Pin PCI-Express Connector | 4-Pin P4 MB Connector | SATA Power Connector | 4-Pin Peripheral Connector | 4-Pin FDD Floppy Connector |
| x 1 | x 1 | x 2 | x 1 | x 4 | x 2 | x 1 |
