Ultra GPB500S-B 550W ATX Power Supply
Description

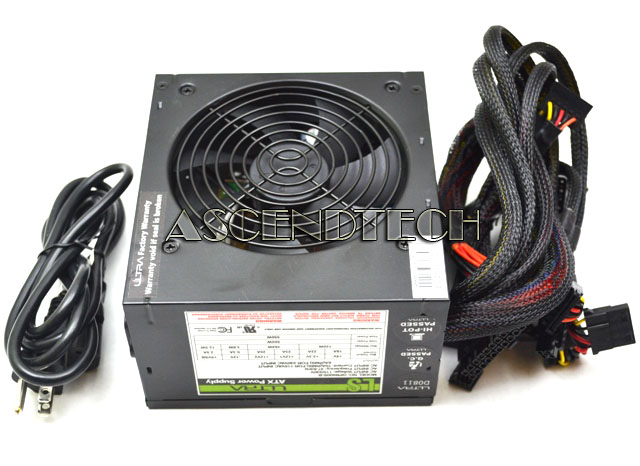

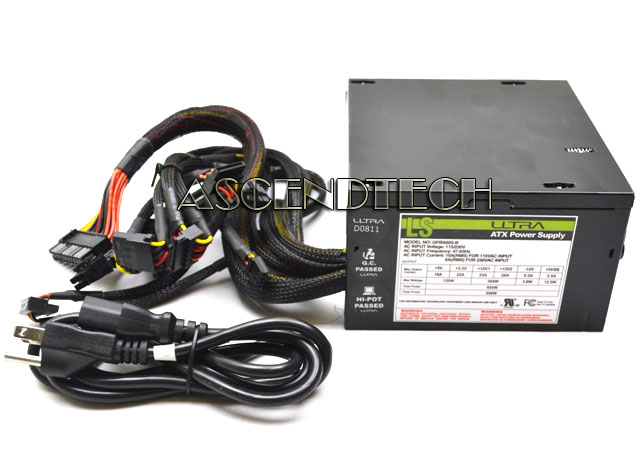

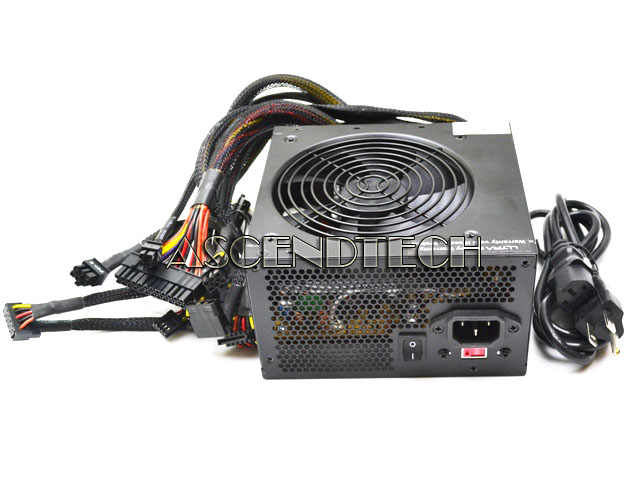

Ultra GPB500S-B LS 550 Watt Dual +12V Rail, Ultra Silent ATX Power Supply. Keep your system running efficiently with the GPB500S-B LS550 Black Power Supply. This 550-Watt PSU delivers consistent electric supply, providing your computer components the power that they need. With an efficiency of 72%, you can be sure that the energy flowing is utilized effectively. The GPB500S-B LS550 Black Power Supply offers a 20+4 pin motherboard connector, four SATA power connector, four 4-pin peripheral connector and others connector that you will need to power different components. It also features a 120mm cooling fan which provides sufficient airflow to keep your system running efficiently. Get the GPB500S-B LS550 Black Power Supply now.
Features:

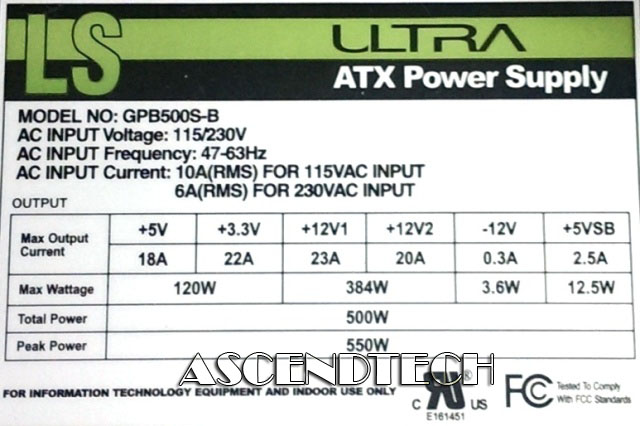

Specifications:
| Form Factor | ATX |
| Peak Wattage | 550W |
| Modular Cabling | No |
| Fan | 135 mm |
| Input Voltage | 115 ~ 230V |
| Input Frequency | 50-60Hz |
| Input Current | 10A(RMS) For 115VAC 6A(RMS) For 230VAC |
| +5V | 18A |
| +3.3V | 22A |
| +12V | 23A |
| +12V2 | 20A |
| -12V | 0.3A |
| +5VSB | 2.5A |
| Dimensions | 3.34" (85mm) H x 5.90" (150mm) D x 5.51" (140mm) W |
| AC Input | |||||||
| DC Output | +5V | +3.3V | +12V1 | +12V2 | -12V | -5V | +5VSB |
| Max Output Current | 18A | 22A | 23A | 0.3A | 2.5A | ||
| Total Power | |||||||
| Peak Power | |||||||
Connectors:
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() |
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() |
| 20+4 pin Motherboard Connector | 8-Pin EPS Connector | 6-Pin PCI-Express Connector | 4-Pin P4 MB Connector | SATA Power Connector | 4-Pin Peripheral Connector | 4-Pin FDD Floppy Connector |
| x 1 | x 1 | x 2 | x 1 | x 4 | x 4 | x 1 |
