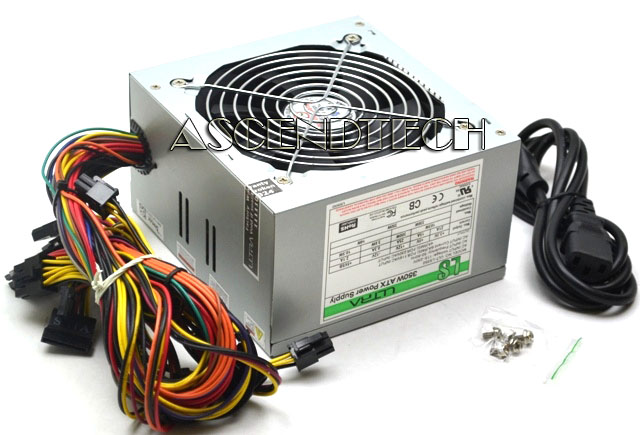

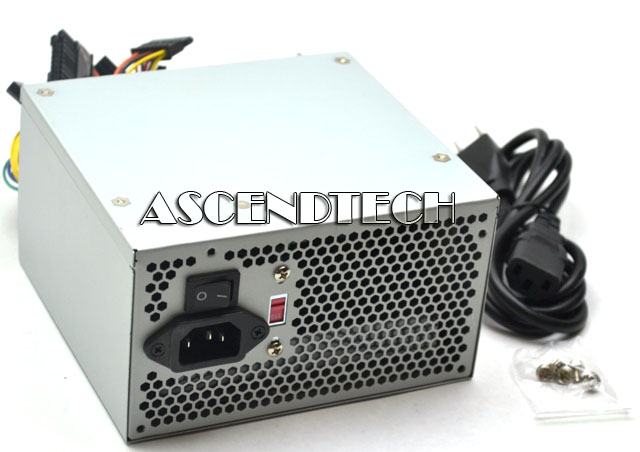

ULT-LS350 | Ultra Ult-Ls350 350 Watt Power Supply

Ultra ULT-LS350 LS Series 350-Watt ATX SATA-Ready PCI-Express Power Supply. Get the Ultra LS Series 350W Power Supply and get an affordable power solution for your PC. This PSU is a cost-efficient choice that delivers 350W of power to any Intel and AMD platforms with 77% energy efficiency. Built with short circuit, in-rush current protection, and thermal overload cutoff protection, this reliable power supply prevents electrical damages caused by short circuits, jolts, over power, and over voltages. Equipped with a 120mm fan, this PSU can also keep up with long hours of intense computer activities. For stable, reliable, and efficient PSU, purchase the Ultra LS Series 350W Power Supply.

Features:

Short Circuit Protection, In-Rush Current Protection,Thermal Overload Cutoff Protection, Over-Temperature, Over-Voltage, Over-Current, Under Voltage

Meets ATX v2.2, V1.3 and ATX 12V v2.2 Specifications

350W Wattage; powers your computer with 350W of energy

77% Energy efficiency; uses less energy and reduces the cost of operating your computer

120mm Fan; Thermostatically controlled fans for low acoustic noise efficiently cools the PSU for long operations

20+4 Pin Connector; links the PSU to the PC system

Specifications:

Form Factor	ATX
Wattage	350W
Modular Cabling	No
Fan	120 mm
Energy Efficiency	77%
Input Voltage	115 ~ 230
+3.3V	21A
+5V	15A
+12V	25A
-12V	0.3A
+5VSB	2.1A
Dimensions	3.34" (85mm) H x 5.90" (150mm) D x 5.51" (140mm) W

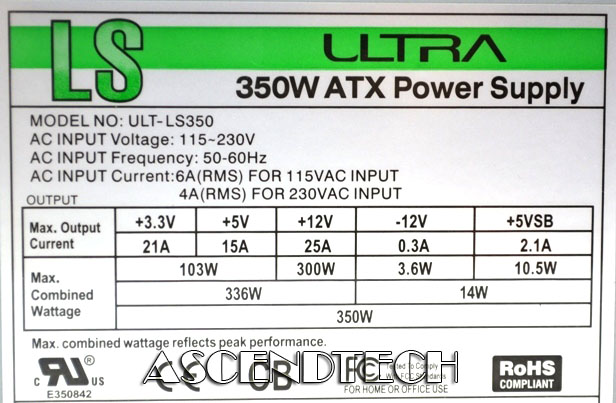

AC Input	6A(RMS)115V/4A(RMS)230V - 60/50Hz
DC Output Voltage	+5V	+3.3V	+12V	+12V1	-12V	-5V	+5VSB
Max Output Current	15A	21A	25A	-	0.3A	-	2.1A
Max Combined Watts	350W

Connectors:



20+4 pin Motherboard Connector	8-Pin EPS Connector	4-Pin P4 MB Connector	SATA Power Connector	4-Pin Peripheral Connector	4-Pin FDD Floppy Connector	6-Pin PCI-Express Connector
x 1	x 1	x 1	x 2	x 4	x 1	x 1

ULTRA ULT-LS350 350 WATT POWER SUPPLY
