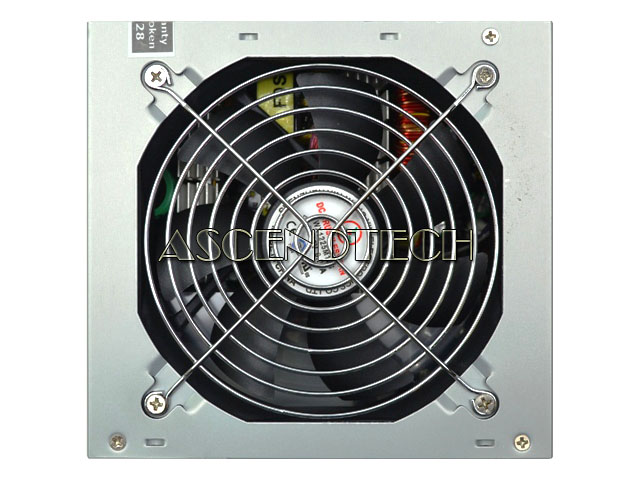

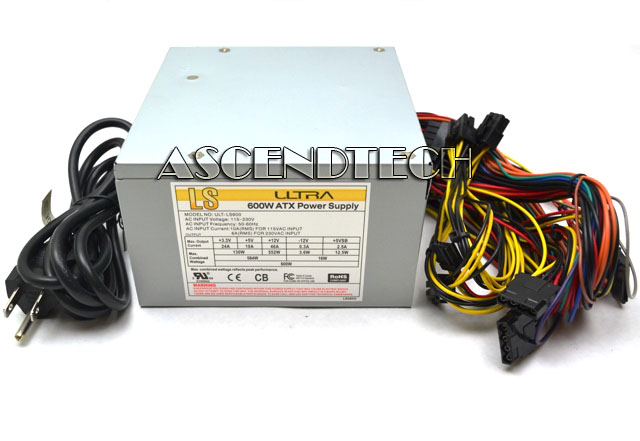

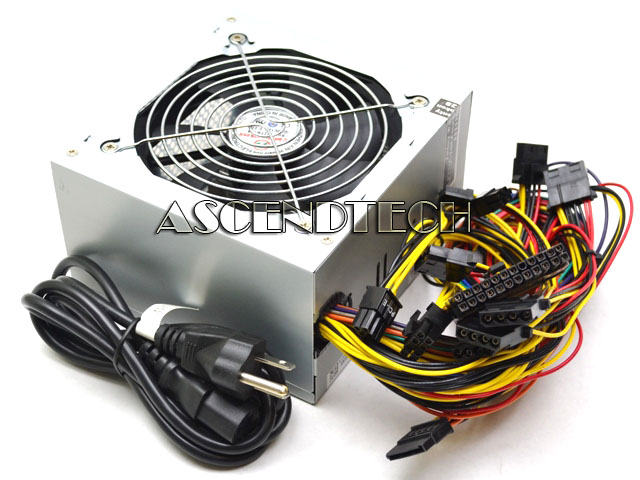

Ultra ULT-LS600 600W Power Supply
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Description
Ultra ULT-LS600 LS Lifetime Series 600 Watt ATX Power Supply. All New Ultra LS power supplies offer more connectivity choices than the typical power supply and have built in short circuit protection. The LS supports all Intel and AMD platforms, SATA devices and PCI Express graphics cards. All LS power supplies also come standard with short circuit protection, in-rush current protection and thermal overload cutoff protection.
Features:
Specifications:
| Form Factor | ATX |
| Peak Wattage | 600W |
| Modular Cabling | No |
| Fan | 120 mm |
| Input Voltage | 115 ~ 230V |
| Input Frequency | 50-60Hz |
| Input Current | 10A(RMS) For 115VAC 6A(RMS) For 230VAC |
| +3.3V | 25A |
| +5V | 32A |
| +12V | 32A |
| -12V | 0.6A |
| +5VSB | 2A |
| Dimensions | 3.34" (85mm) H x 5.90" (150mm) D x 5.51" (140mm) W |
| AC Input | |||||||
| DC Output | +5V | +3.3V | +12V | +12V | -12V | -5V | +5VSB |
| Max Output Current | 32A | 25A | 32A | 0.6A | 2.0A | ||
| Max Combined Watts | |||||||
Connectors:
 |  |  |  |  |  |  | |
 |  |  |  |  |  |  | |
| 20+4 pin Motherboard Connector | 8-Pin EPS Connector | 6-Pin PCI-Express Connector | 4-Pin P4 MB Connector | SATA Power Connector | 4-Pin Peripheral Connector | 4-Pin FDD Floppy Connector | |
| x 1 | x 1 | x 1 | x 1 | x 2 | x 5 | x 1 |
