Ultra ULT-LSP650P 650Watt Power Supply

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

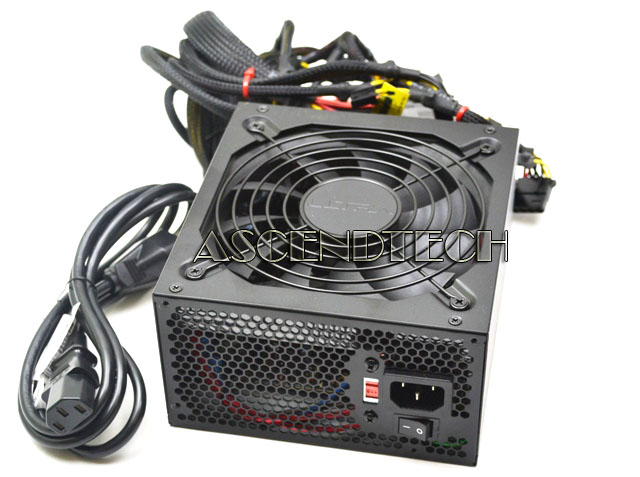

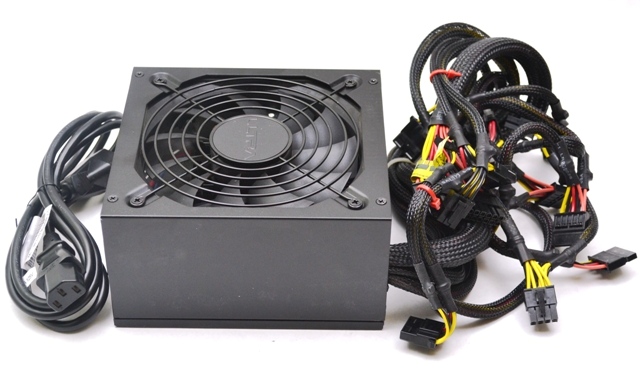

Ultra Ult-Lsp650p 650Watt Power Supply
Ultra Ult-Lsp650p 650Watt Power Supply
Ultra Ult-Lsp650p 650Watt Power Supply
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodePWRSPULTLSP650P
BrandUltra
ModelULT-LSP650P
CategoryUltra Power Supplies

Description

Ultra ULT-LSP650P LSP 650 Watt SATA-Ready, SLI-Ready, 135mm Fan, Sleeved Cables ATX Power Supply. For efficient power and performance, choose the Ultra LSP650P 650-Watt Power Supply. This Power Supply delivers 650W of power with 80% energy efficiency. Designed to handle continuous PC operations, including intense gaming performances, this robust power supply combats heat with powerful air circulation from its quiet 135mm fan and sleeved finished power cables. Get an affordable PSU that delivers power, efficiency, and durability; get the Ultra LSP650P 650-Watt Power Supply.



Features:

  • 650-Watt PSU; offers 650W of power to handle intense PC operations
  • SLI/Crossfire Ready; install multiple GPUs to runs demanding games and software
  • 80% Energy efficiency; reduces energy consumption and costs
  • 135mm Fan - Allows for cooler and quieter operation
  • 20+4-Pin Connector; connects the PSU to your system’s motherboard
  • Short Circuit Protection, In-Rush Current Protection,Thermal Overload Cutoff Protection, Over-Temperature, Over-Voltage, Over-Current, Under Voltage
  • Sleeved Cables
  • Matte Black Finish



    • Specifications    :

    Form FactorATX
    Peak Wattage650W
    Modular CablingNo
    Energy Efficiency80%
    Fan135 mm
    Input Voltage115 ~ 230V
    Input Frequency50-60Hz
    Input Current10.5A(RMS) For 115VAC
    6.5A(RMS) For 230VAC
    +3.3V24A
    +5V32A
    +12V38A
    -12V0.6A
    +5VSB2.5 A
    Dimensions3.34" (85mm) H x 5.90" (150mm) D x 5.51" (140mm) W

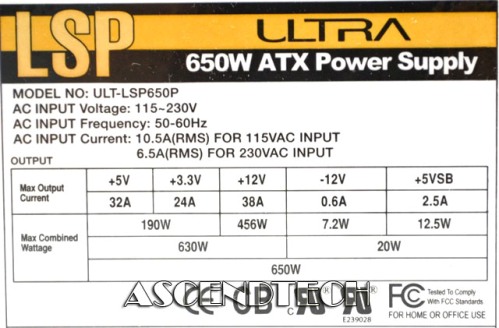

    AC Input
    10.5A(RMS)115V/6.5A(RMS)230V - 60/50Hz
    DC Output+5V+3.3V+12V+12V-12V-5V+5VSB
    Max Output Current32A24A38A
    -
    		0.6A
    -
    		2.5A
    Max Combined Watts
    650W


    Connectors    :



    20+4 pin Motherboard Connector8-Pin EPS Connector6-Pin PCI-Express Connector4-Pin P4 MB ConnectorSATA Power Connector4-Pin Peripheral Connector4-Pin FDD Floppy Connector
    x 1x 1x 2x 1x 4x 5x 1
