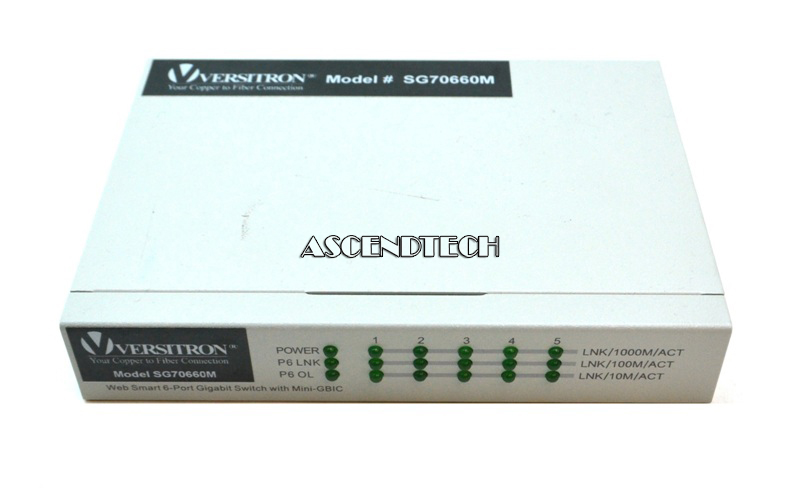

Versitron SG70660M Optic Ethernet Switch

Versitron SG70660M 6-Port 10/100/1000 GBIC Fiber Optic Ethernet Switch. If you're tired of having to buy big switches for small applications, this 6-port managed gigabit fiber switch is for you. The SG70660M comes in a compact package and is compatible with 10, 100, or 1000baset network devices The switch also offers fiber optic uplinks using GBIC module technology. Many choices are available including multimode, singlemode, and single fiber. So, if you need a "little switch" with a "big switch" mentality, this could be your answer.

Please note, this unit is used and it may have minor scuffs and scratches, but it is fully operational and functions as intended!
It does not include any accessories.



Features:

Provides 5 10/100/1000Mbps Gigabit Ethernet ports and 1 SFP port
Provides in-band web-based management interface
All copper ports support auto-negotiation and auto-MDI/MDI-X detection
Provides full wire speed forwarding
Supports 802.3x flow control for full-duplex and backpressure for half-duplex
Provides port status, statistic monitoring, and control function
Supports port-based and 802.1Q Tag-based VLAN
Provides QoS function
Provides port link aggregation (trunking) function
Provides port mirroring function
Compact Design


Specifications:

Brand: Versitron
Model: SG70660M
Standards: IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.1Q

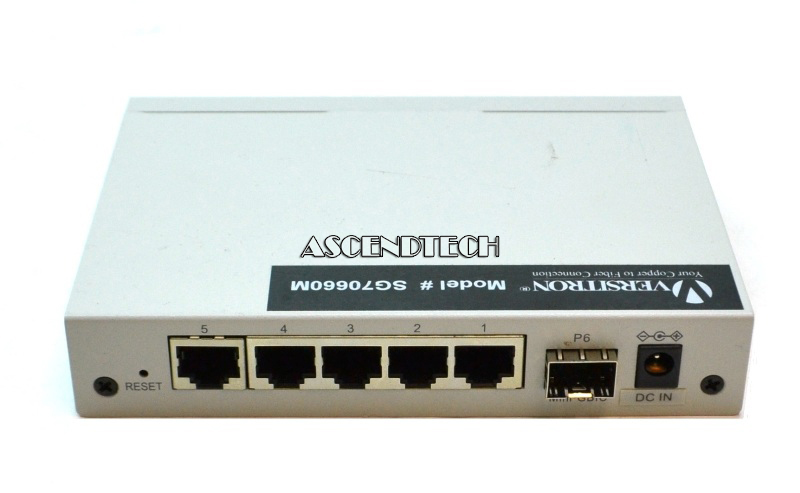

Network Ports: (5) 10/100/1000Mbps Copper Ports (RJ-45)
(1) 1000Mbps SFP Slot
Copper Ports: Shielded RJ-45, 10/100Mbps, auto-negotiation, auto-MDI/MDI-X
Fiber Port: Fast Ethernet 100Base Full-Duplex Operation
Cables:
10/100Base: Cat5 or higher (100 meters max.)
1000Base: Cat5e or higher (100 meters max.)
1000Base-FX: Multi-Mode or Single-Mode Fiber Optic Cable
Buffer Memory: 112Kb
MAC Addresses: Table with 8K entries
VLAN: Port-based VLAN, 802.1Q Tag-based VLAN
QoS: (4) Priority Queues, Classification: Port-based, 802.1p, IP DSCP
Port Link Aggregation: Trunking Groups: 2 max., Ports/Group: 2
LED Indication:
Power Status
TX Ports: Speed/Link/Act Status
FX Port: Speed/Link/Act Status, Optical Link Status
DC Power Input: Rating: +7.5VDC, 1A
Consumption: 3.6Wmax. @ 7.5V
Dimensions: 5.67 x 4.11 x 1.02 inches (WxDxH)
Environment:
Operating Temperature: -0° C ~ +40° C
Storage Temperature: -20° C ~ +70° C
Relative Humidity: 10% to 90% non-condensing
Included:
Versitron SG70660M

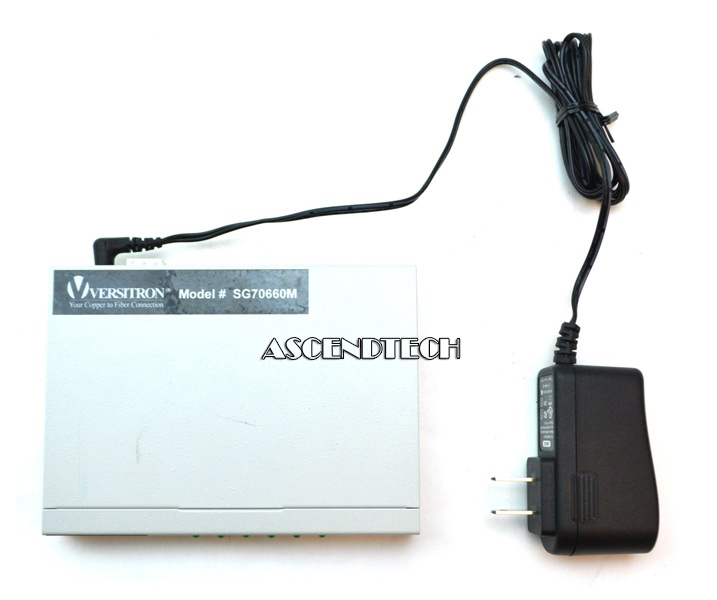

Power Supply

Please note, this unit is used and it may have minor scuffs and scratches, but it is fully operational and functions as intended!
It does not include any accessories.
